NSN 5340-00-467-9921
Part Details | ACCESS COVER
5340-00-467-9921 A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above.
Alternate Parts: 150399GALT1PC66, 150-399GALT1PC66, S150399GREVAGC66, S150-399GREVAGC66, 3315335REVAPC66, 3315335REVAPC66, 5340-00-467-9921, 00-467-9921, 5340004679921, 004679921
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-467-9921 | 29785 ( COVER, ACCESS ) |
REFERENCE DRAWINGS & PICTURES

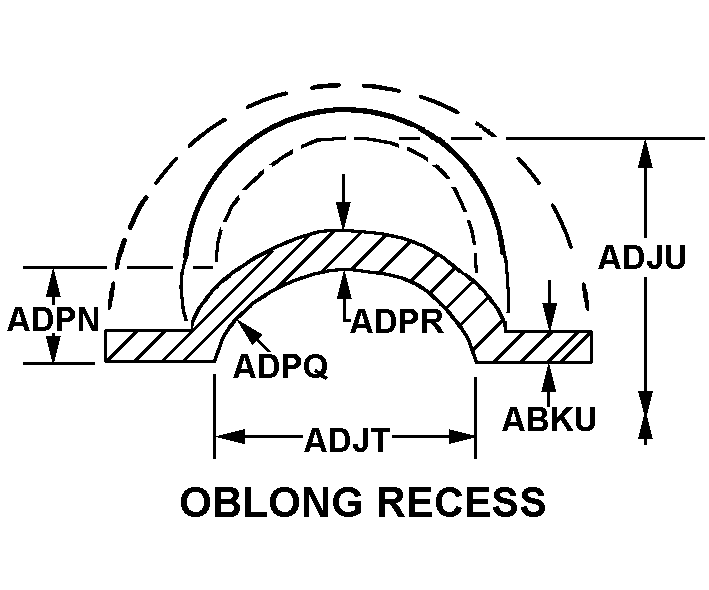

OBLONG RECESS
RECTANGLE, NO HOLES
UNTHREADED HOLE
Cross Reference | NSN 5340-00-467-9921
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 150-399GALT1PC66 | 27235 | HARDIE-TYNES CO., INC. |
| S150-399GREVAGC66 | 27235 | HARDIE-TYNES CO., INC. |
| 3315335REVAPC66 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 3315335REVAPC66 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Technical Data | NSN 5340-00-467-9921
| Characteristic | Specifications |
|---|---|
| SECURING DEVICE TYPE | THREADED FASTENER |
| MATERIAL | ALUMINUM ALLOY |
| PERIPHERAL SHAPE STYLE | 0 RECTANGLE, NO HOLES |
| WIDTH | 3.000 INCHES NOMINAL |
| LENGTH | 2.125 INCHES NOMINAL |
| DISTANCE BETWEEN HOLE CENTERLINE AND FIRST HOLE ALONG LENGTH | 0.343 INCHES NOMINAL |
| DISTANCE BETWEEN HOLE CENTERLINE AND FIRST HOLE ALONG WIDTH | 2.500 INCHES NOMINAL |
| DISTANCE FROM FIRST HOLE CENTERLINE TO END ALONG LENGTH | 0.750 INCHES NOMINAL |
| DISTANCE FROM FIRST HOLE CENTERLINE TO END ALONG WIDTH | 0.500 INCHES NOMINAL |
| CORNER RADIUS | 0.625 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | OBLONG RECESS |
| FLANGE THICKNESS | 0.062 INCHES NOMINAL |
| INSIDE WIDTH | 1.750 INCHES NOMINAL |
| INSIDE LENGTH | 1.875 INCHES NOMINAL |
| FIRST RECESS INSIDE HEIGHT | 2.535 INCHES NOMINAL |
| INSIDE CORNER RADIUS | 0.375 INCHES NOMINAL |
| BODY THICKNESS | 0.125 INCHES NOMINAL |
| MOUNTING OPENING SHAPE STYLE | UNTHREADED HOLE |
| HOLE DIAMETER | 0.218 INCHES NOMINAL |
| SPECIAL FEATURES | 1/8 IN.DIA OIL HOLE IN TOP,1/2 IN.W SLOT 2-3/4 IN.H IN 1 END |
