NSN 5340-00-466-6698
Part Details | HINGED HASP
5340-00-466-6698 An item consisting of a hinged strap with a slot in one end through which a loop or staple may pass. When a loop or staple is passed through the slot in the strap, a means of securing the two parts together is afforded. It may include a staple.
Alternate Parts: SC917US2C, SC917US2C, 5340-00-466-6698, 00-466-6698, 5340004666698, 004666698
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAY 30, 1974 | 00-466-6698 | 06611 ( HASP, HINGED ) |
REFERENCE DRAWINGS & PICTURES

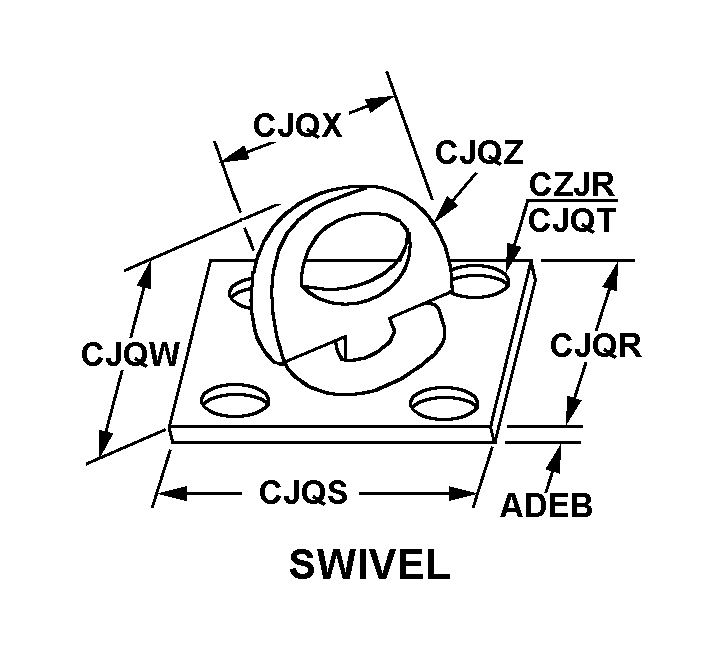

SWIVEL
SINGLE SAFETY
Cross Reference | NSN 5340-00-466-6698
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SC917US2C | 6ZGH6 | STANLEY BLACK & DECKER, INC. |
| SC917US2C | 57068 | STANLEY WORKS THE |
Technical Data | NSN 5340-00-466-6698
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL OVERALL |
| STYLE DESIGNATOR | SINGLE SAFETY |
| SLOTTED LEAF LENGTH | 3.500 INCHES NOMINAL |
| LEAF WIDTH | 1.500 INCHES NOMINAL |
| FIXED LEAF LENGTH | 1.312 INCHES NOMINAL |
| STAPLE STYLE | SWIVEL |
| HINGE MOUNTING TYPE | FULL MORTISE |
| REVERSIBLE FEATURE | NOT INCLUDED |
| KNUCKLE TYPE | FRICTION |
| KNUCKLE QUANTITY | 3 |
| MOUNTING HOLE QUANTITY | 7 |
