NSN 5340-00-466-6547
Part Details | EXPANSION SHIELD
5340-00-466-6547 An item for inserting in a hole, usually in masonry, designed to be expanded either by means of a setting tool or by the insertion of the bolt, screw or nail for mounting or attaching another object. It may include the bolt, screw or nail.
Alternate Parts: 391512000, 3915-12000, 5340-00-466-6547, 00-466-6547, 5340004666547, 004666547
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAY 30, 1974 | 00-466-6547 | 08322 ( SHIELD, EXPANSION ) |
REFERENCE DRAWINGS & PICTURES

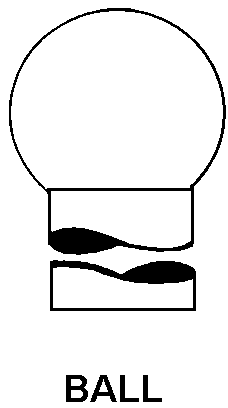

BALL
SINGLE EXPANSION MACHINE SCREW
Cross Reference | NSN 5340-00-466-6547
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3915-12000 | 78206 | STAR EXPANSION CO |
Technical Data | NSN 5340-00-466-6547
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| STYLE DESIGNATOR | 3 SINGLE EXPANSION MACHINE SCREW |
| HOLE ACCOMMODATION DIAMETER | 0.250 INCHES NOMINAL |
| INSERT TYPE FOR WHICH DESIGNED | NAILED |
| UNIT QUANTITY | 1 |
| OVERALL LENGTH | 1.250 INCHES NOMINAL |
| THREAD PROVISION | UNTHREADED |
| FASTENER TYPE | NAIL |
| HEAD STYLE | 9 BALL |
