NSN 5340-00-465-3195
Part Details | PIPE HANGER
5340-00-465-3195 A metallic or nonmetallic item designed to suspend, support, retain, and/or position items such as cable(s), conduit(s), pipe(s), tube(s), and the like from a structure. It may be fastened vertically or horizontally to the structure by means of rod(s), bolt(s), screw(s), and the like. Excludes CLAMP (1), LOOP; STRAP, RETAINING; CLAMP (1), ELECTRICAL; HANGER, WIRE STRAND, SUPPORT (1), ELECTRICAL CABLE; HANGER, CABLE; and hook, support.
Alternate Parts: 30712, 307-1/2, 5340-00-465-3195, 00-465-3195, 5340004653195, 004653195
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAY 30, 1974 | 00-465-3195 | 42764 ( HANGER, PIPE ) |
REFERENCE DRAWINGS & PICTURES

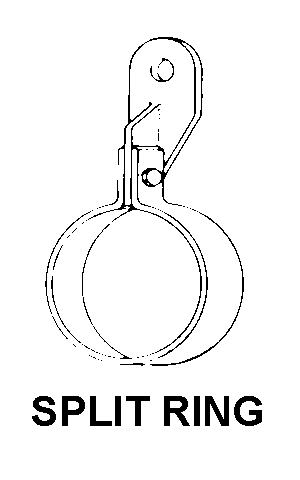

SPLIT RING
Cross Reference | NSN 5340-00-465-3195
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 307-1/2 | 73164 | FIGGIE INTL INCFEE AND MASON MFG CO DIV |
Technical Data | NSN 5340-00-465-3195
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON MALLEABLE |
| SURFACE TREATMENT | COPPER |
| STYLE DESIGNATOR | SPLIT RING |
| SUPPORTED ITEM AND QUANTITY | 1 TUBE |
| TUBE ACCOMMODATION OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |
