NSN 5340-00-464-9293
Part Details | MANUAL CONTROL HANDLE
5340-00-464-9293 A rigid item with a plain or serrated gripping surface, designed to be grasped with the hand(s) for the purpose of manually transmitting rotary or linear motion to other devices, and/or holding and guiding an item in a desired position during operation. It may be fixed or rotating and furnished with mounting attachments, such as pin, stud, bolt, or the like. It may also be adjusted to a hand crank arm, a handwheel, or the like. Excludes KNOB; CRANK, HAND; and LEVER, MANUAL CONTROL. See also HANDLE (as modified). Do not use if a more specific name applies.
Alternate Parts: 3197927, 5340-00-464-9293, 00-464-9293, 5340004649293, 004649293
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | FEB 27, 1972 | 00-464-9293 | 32333 ( HANDLE, MANUAL CONTROL ) |
REFERENCE DRAWINGS & PICTURES

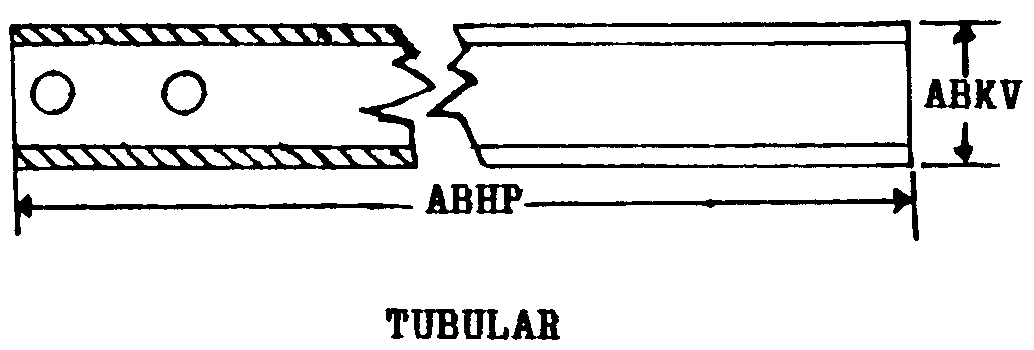

TUBULAR
Cross Reference | NSN 5340-00-464-9293
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3197927 | 82577 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5340-00-464-9293
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TUBULAR |
| OVERALL LENGTH | 4.180 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.760 INCHES NOMINAL |
| MOUNTING FACILITY DIAMETER | 0.330 INCHES MINIMUM AND 0.333 INCHES MAXIMUM |
