NSN 5340-00-462-4159
Part Details | RETAINING BAND
5340-00-462-4159 A flexible or semiflexible metal strip designed to partially surround and retain an item against a structure, frame, bracket, or the like. Includes a single segment of a sectioned type CLAMP, LOOP or CLAMP, HOSE. Both ends may have, but one end must have, a loop to accommodate a hinge pin, or a stud welded to the end of the band. May be furnished with a trunnion, T-bolt, pin, latch, or the like. For items designed to completely surround an object(s), see CLAMP, LOOP. See also COVER, ACCESS and STRAP, RETAINING.
Alternate Parts: 109473372, 10947337-2, 5340-00-462-4159, 00-462-4159, 5340004624159, 004624159
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAY 07, 1969 | 00-462-4159 | 20318 ( BAND, RETAINING ) |
REFERENCE DRAWINGS & PICTURES

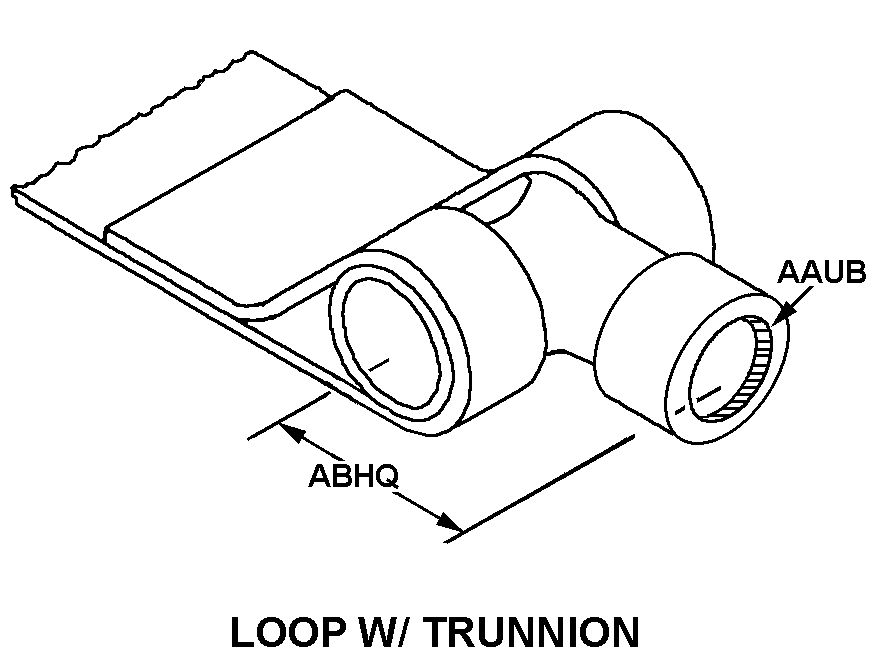

LOOP WITH TRUNNION
FLAT
Cross Reference | NSN 5340-00-462-4159
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10947337-2 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5340-00-462-4159
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | FLAT |
| MATERIAL | 1$2$4$DST0316 |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5059 MIL SPEC SINGLE MATERIAL RESPONSE |
| WIDTH | 1.250 INCHES NOMINAL |
| THICKNESS | 0.022 INCHES MINIMUM AND 0.028 INCHES MAXIMUM |
| LENGTH | 8.250 INCHES NOMINAL |
| END STYLE | LOOP WITH TRUNNION |
| HOLE DIAMETER | 0.250 INCHES NOMINAL |
| LENGTH | 0.688 INCHES NOMINAL |
