NSN 5340-00-460-9675
Part Details | SECTION BLOCK CLAMP
5340-00-460-9675 A single piece of multipiece CLAMP, BLOCK. For items specifically designed to serve as a guide, see FAIRLEAD BLOCK and FAIRLEAD SECTION, BLOCK. Excludes BRACKET, PIPE.
Alternate Parts: 6580282, 658028-2, 5340-00-460-9675, 00-460-9675, 5340004609675, 004609675
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 09, 1970 | 00-460-9675 | 39404 ( CLAMP, BLOCK, SECTION ) |
REFERENCE DRAWINGS & PICTURES

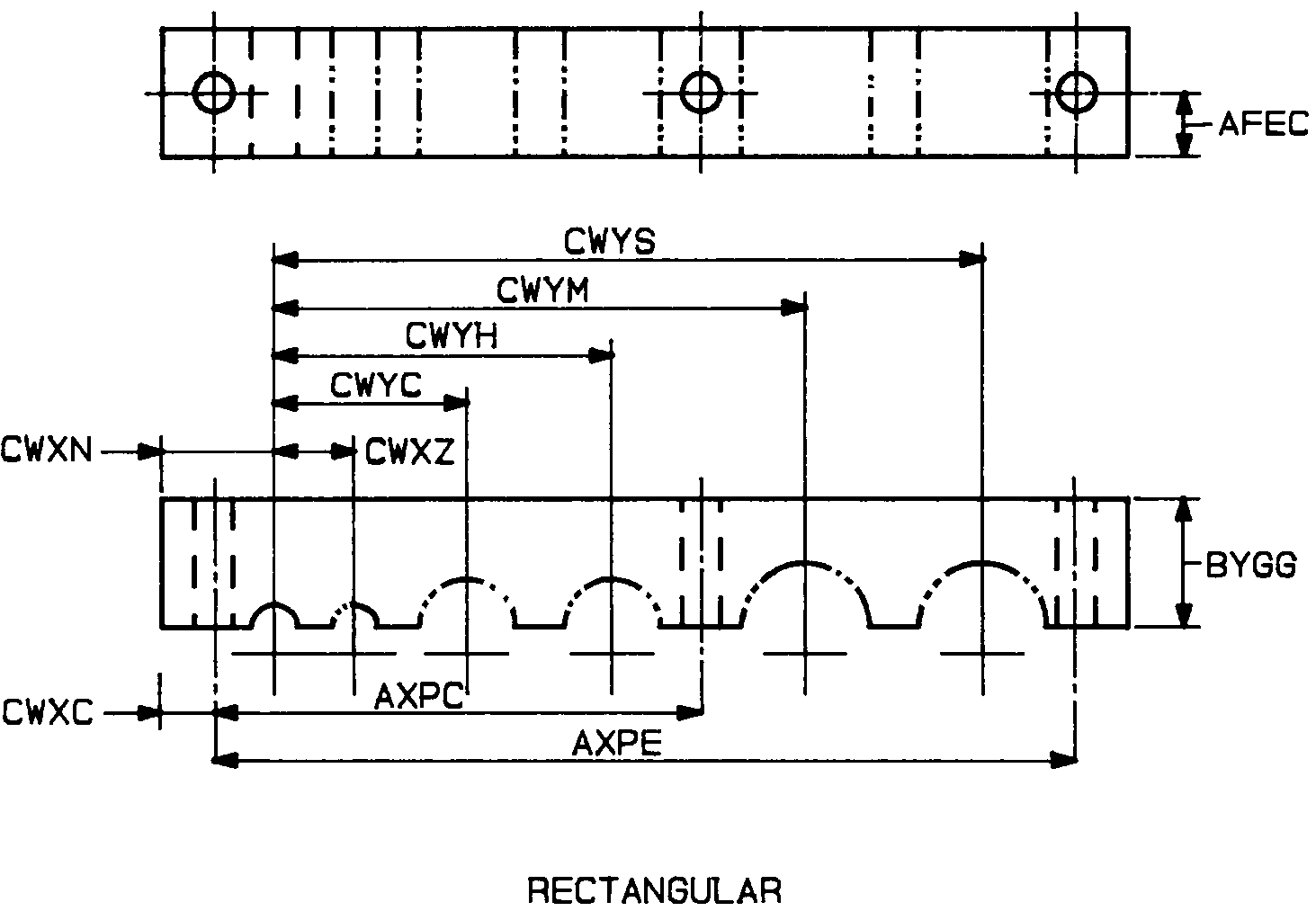

RECTANGULAR
Cross Reference | NSN 5340-00-460-9675
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 658028-2 | 96214 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5340-00-460-9675
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250 TO 11,T651 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | CHROMATE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE |
| STYLE DESIGNATOR | RECTANGULAR |
| DISTANCE FROM CENTER OF MOUNTING HOLE TO EDGE ALONG THE WIDTH | 0.180 INCHES NOMINAL |
| BLOCK HEIGHT | 1.000 INCHES NOMINAL |
| DISTANCE FROM END TO FIRST CLAMPING HOLE CENTER | 1.275 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN FIRST AND SECOND CLAMPING HOLES | 2.350 INCHES NOMINAL |
| OVERALL LENGTH | 4.900 INCHES NOMINAL |
| OVERALL WIDTH | 1.120 INCHES NOMINAL |
| CLAMPING HOLE QUANTITY | 2 |
