NSN 5340-00-460-3426
Part Details | SLIDING DOOR TRACK
5340-00-460-3426 A fabricated form made of metal or plastic, which serves as a runway for a sliding door hanger and which is bolted directly to a structure or held by means of brackets.
Alternate Parts: 20503019420, 205-030-194-20, 5340-00-460-3426, 00-460-3426, 5340004603426, 004603426
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 05, 1970 | 00-460-3426 | 06690 ( TRACK, SLIDING DOOR ) |
REFERENCE DRAWINGS & PICTURES

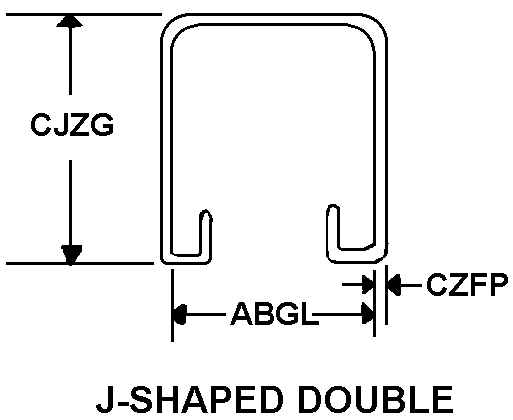

J-SHAPED DOUBLE
Cross Reference | NSN 5340-00-460-3426
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 205-030-194-20 | 97499 | BELL HELICOPTER TEXTRON INC.DBA BELL HELICOPTER |
Technical Data | NSN 5340-00-460-3426
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | J-SHAPED DOUBLE |
| THICKNESS | 0.060 INCHES NOMINAL |
| SECTION SHAPE | CURVED |
| SPECIAL FEATURES | O/A LGTH 5.50 FT;CURVATIRE ANGLE 90 DEG |
