NSN 5340-00-459-5970
Part Details | ACCESS COVER
5340-00-459-5970 A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above.
Alternate Parts: 4L3378, 4123378, 5340-00-459-5970, 00-459-5970, 5340004595970, 004595970
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | DEC 29, 1969 | 00-459-5970 | 29785 ( COVER, ACCESS ) |
REFERENCE DRAWINGS & PICTURES
CIRCULAR RECESS

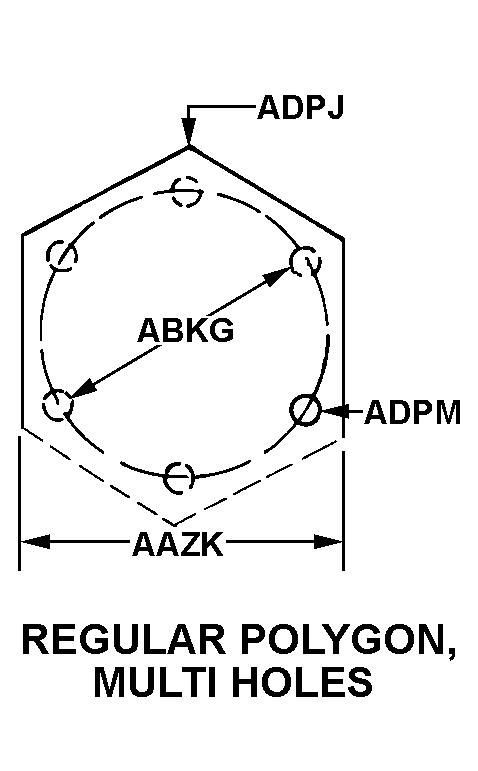

REGULAR POLYGON, MULTI HOLES
UNTHREADED HOLE
Cross Reference | NSN 5340-00-459-5970
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4L3378 | 11083 | CATERPILLAR INC.DBA CATERPILLAR |
| 4123378 | 57217 | STRIEGEL SUPPLY INC |
Technical Data | NSN 5340-00-459-5970
| Characteristic | Specifications |
|---|---|
| SECURING DEVICE TYPE | THREADED FASTENER |
| MATERIAL | STEEL |
| PERIPHERAL SHAPE STYLE | REGULAR POLYGON, MULTI HOLES |
| WIDTH ACROSS FLATS | 6.562 INCHES NOMINAL |
| BOLT CIRCLE DIAMETER | 6.625 INCHES NOMINAL |
| CORNER QUANTITY | 6 |
| BOLT CIRCLE HOLE QUANTITY | 6 |
| CORNER RADIUS | 0.500 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | 6 CIRCULAR RECESS |
| BODY THICKNESS | 0.375 INCHES NOMINAL |
| MOUNTING OPENING SHAPE STYLE | UNTHREADED HOLE |
| HOLE DIAMETER | 0.406 INCHES NOMINAL |
