NSN 5340-00-458-1952
Part Details | SNAP HOOK
5340-00-458-1952 A metal fastening device one or both ends of which are hook shaped with a closing or locking device over the throat opening which is held closed by spring action. If hook shaped on one end only the opposite end is provided with a fixed, loose, or swivel loop or opening for connecting to another item. Excludes cargo hooks with safety devices.
Alternate Parts: NAS1281A16, 5340-00-458-1952, 00-458-1952, 5340004581952, 004581952
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAY 07, 1969 | 00-458-1952 | 16954 ( SNAP HOOK ) |
REFERENCE DRAWINGS & PICTURES
ROUND EYE

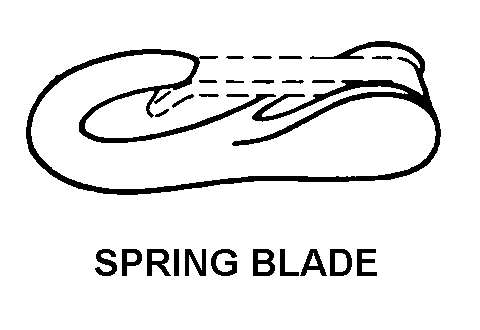

SPRING BLADE
Cross Reference | NSN 5340-00-458-1952
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1281A16 | 80205 | NATIONAL AEROSPACE STANDARDSCOMMITTEE AEROSPACE INDUSTRIES |
Technical Data | NSN 5340-00-458-1952
| Characteristic | Specifications |
|---|---|
| HOOK STYLE DESIGNATOR | SPRING BLADE |
| BLADE MATERIAL | STEEL |
| DESIGN TYPE | FIXED |
| END POSITION | CONNECTION END AT RIGHT ANGLE TO PLANE OF HOOK END |
| END CONNECTION STYLE | 6 ROUND EYE |
| INSIDE LENGTH | 1.000 INCHES NOMINAL |
| HOOK MATERIAL | IRON, MALLEABLE |
| CONNECTION END MATERIAL | IRON, MALLEABLE |
| OVERALL LENGTH | 1.630 INCHES NOMINAL |
| RUBBER COVERED FEATURE | NOT INCLUDED |
| UNATTACHED RING | NOT INCLUDED |
