NSN 5340-00-457-9267
Part Details | SPACING THREADED STANDOFF
5340-00-457-9267 A standoff that must have a threaded end(s) or be internally threaded its full length. For items having external threads on both ends, see STUD (as modified). For items with an outside contour that is the same for the entire length, are flat on top and bottom, having internal threads its full length, and the length does not exceed twice the width across the flats or outside diameter, see NUT (as modified); use maximum dimensions(s) for compliance.
Alternate Parts: 10056033, 10192639, 5340-00-457-9267, 00-457-9267, 5340004579267, 004579267
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | APR 30, 1969 | 00-457-9267 | 40280 ( STANDOFF, THREADED, SPACING ) |
REFERENCE DRAWINGS & PICTURES

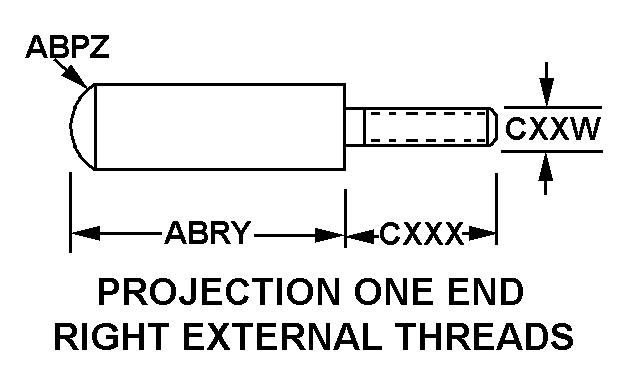

PROJECTION ONE END RIGHT EXTERNAL THREADS
Cross Reference | NSN 5340-00-457-9267
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10056033 | A486G | NIMIKKEISTOKESKUS NCB FINLAND |
| 10192639 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5340-00-457-9267
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE | ROUND |
| DIAMETER | 0.243 INCHES MINIMUM AND 0.246 INCHES MAXIMUM |
| STYLE DESIGNATOR | PROJECTION ONE END RIGHT EXTERNAL THREADS |
| END RADIUS | 0.075 INCHES NOMINAL |
| LENGTH | 1.432 INCHES NOMINAL |
| SPECIAL FEATURES | CHAMFER SECOND END 30 DEGREES |
