NSN 5340-00-455-2574
Part Details | SNAP HOOK
5340-00-455-2574 A metal fastening device one or both ends of which are hook shaped with a closing or locking device over the throat opening which is held closed by spring action. If hook shaped on one end only the opposite end is provided with a fixed, loose, or swivel loop or opening for connecting to another item. Excludes cargo hooks with safety devices.
Alternate Parts: 501338, 5013-3-8, 990C847H01, 5340-00-455-2574, 00-455-2574, 5340004552574, 004552574
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | APR 16, 1969 | 00-455-2574 | 16954 ( SNAP HOOK ) |
REFERENCE DRAWINGS & PICTURES
ROUND EYE

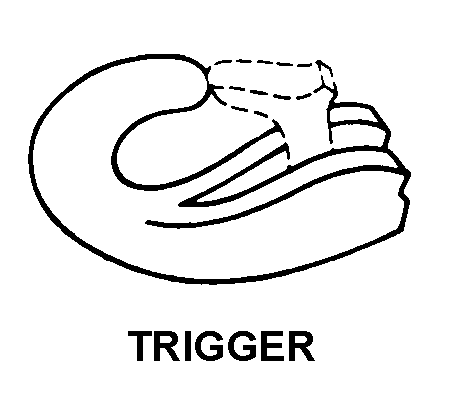

TRIGGER
Cross Reference | NSN 5340-00-455-2574
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5013-3-8 | 76786 | BUCKLES INTERNATIONAL, INC. |
| 990C847H01 | 18323 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDBA ELECTRONIC SYSTEMS |
Technical Data | NSN 5340-00-455-2574
| Characteristic | Specifications |
|---|---|
| HOOK STYLE DESIGNATOR | TRIGGER |
| DESIGN TYPE | SWIVEL |
| END CONNECTION STYLE | 2 ROUND EYE |
| INSIDE WIDTH | 0.370 INCHES NOMINAL |
| HOOK MATERIAL | BRONZE |
| CONNECTION END MATERIAL | BRONZE |
| OVERALL LENGTH | 2.370 INCHES NOMINAL |
| RUBBER COVERED FEATURE | NOT INCLUDED |
| UNATTACHED RING | NOT INCLUDED |
