NSN 5340-00-454-8622
Part Details | RETAINING BAND
5340-00-454-8622 A flexible or semiflexible metal strip designed to partially surround and retain an item against a structure, frame, bracket, or the like. Includes a single segment of a sectioned type CLAMP, LOOP or CLAMP, HOSE. Both ends may have, but one end must have, a loop to accommodate a hinge pin, or a stud welded to the end of the band. May be furnished with a trunnion, T-bolt, pin, latch, or the like. For items designed to completely surround an object(s), see CLAMP, LOOP. See also COVER, ACCESS and STRAP, RETAINING.
Alternate Parts: 11633803, 11633803, 5340-00-454-8622, 00-454-8622, 5340004548622, 004548622
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | APR 16, 1969 | 00-454-8622 | 20318 ( BAND, RETAINING ) |
REFERENCE DRAWINGS & PICTURES

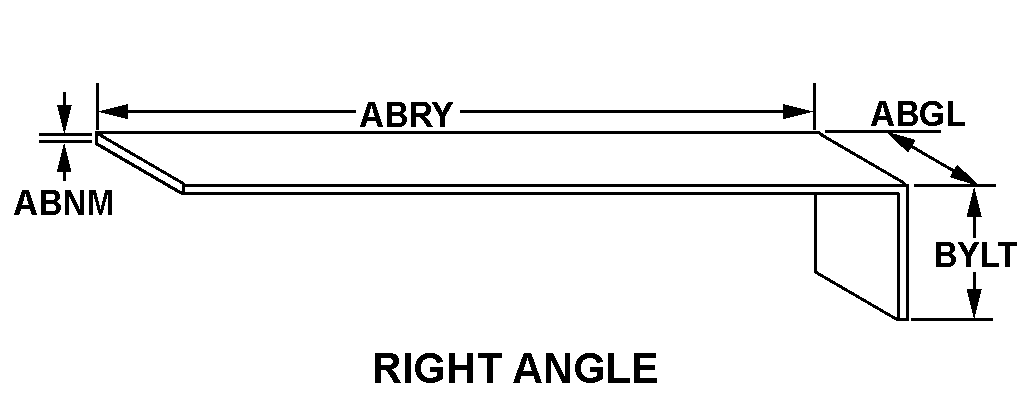

RIGHT ANGLE
Cross Reference | NSN 5340-00-454-8622
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11633803 | T0720 | FNSS SAVUNMA SISTEMLERI A.S. |
| 11633803 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5340-00-454-8622
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | RIGHT ANGLE |
| WIDTH | 1.470 INCHES MINIMUM AND 1.530 INCHES MAXIMUM |
| THICKNESS | 0.049 INCHES NOMINAL |
| LENGTH | 26.000 INCHES MINIMUM AND 26.250 INCHES MAXIMUM |
| SHORT LEG OVERALL LENGTH | 6.500 INCHES MINIMUM AND 6.750 INCHES MAXIMUM |
