NSN 5340-00-451-8157
Part Details | WEBBING STRAP
5340-00-451-8157 A narrow strip of webbing cut to a definite length, having one or both ends processed. It is usually designed for, and may have, one or more attachments or fasteners, such as BUCKLE; LOOP, STRAP FASTENER; strap end clip; RING, DEE; Hook; and the like. Excludes STRAP, BERTH, MATTRESS RETAINING; STRAP, CHIN; safety straps; and WEBBING, TEXTILE. Do not use if a more specific item name applies.
Alternate Parts: 101906358, 10190635-8, 5340-00-451-8157, 00-451-8157, 5340004518157, 004518157
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAY 21, 1971 | 00-451-8157 | 20659 ( STRAP, WEBBING ) |
REFERENCE DRAWINGS & PICTURES

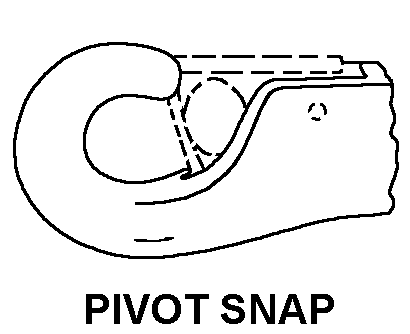

PIVOT SNAP
FLAT CLIP
Cross Reference | NSN 5340-00-451-8157
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10190635-8 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5340-00-451-8157
| Characteristic | Specifications |
|---|---|
| MATERIAL | COTTON |
| WIDTH | 1.000 INCHES NOMINAL |
| LENGTH | 22.000 INCHES MINIMUM AND 23.000 INCHES MAXIMUM |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-W-5665, TYPE 17, CLASS 2B MIL SPEC SINGLE MATERIAL RESPONSE |
| FOLD TYPE | LOOSE |
| ATTACHMENT METHOD FOR WHICH DESIGNED | SEWED |
| END CLIP STYLE DESIGNATOR | FLAT CLIP |
| END CLIP MATERIAL | 0$DST0000 |
| END CLIP QUANTITY | 1 |
| HOOK STYLE DESIGNATOR | PIVOT SNAP |
| HOOK CONNECTION TYPE | SWIVELING |
| HOOK MATERIAL | STEEL |
| HOOK QUANTITY | 1 |
| FASTENED HOOK FEATURE | NOT INCLUDED |
| HOOK FASTENING METHOD | ANY ACCEPTABLE |
