NSN 5340-00-449-4865
Part Details | HANDWHEEL
5340-00-449-4865 An item having a major diameter of 3 or more inches (76.2mm) other than items having spoked or sumulated spoked construction, which may be under 3 inches (76.2mm) designed to be gripped by the hand to transmit rotary motion to other devices through a center axis, fabricated in the form of a solid body with simulated spokes or a recessed surface between the rim and the hub, or it may be built up in the form of a frame having a central hub connected to the rim by the spokes. It may have reference markings in the form of dots, arrows, hairline, etc., to indicate the relative position and/or direction of rotation of the item(s) with which it is used. It may also include an integral ratchet device. For similar items having a maximum diameter of less than 3 inches (76.2mm), see KNOB. For items calibrated in units or series of divisions denoting relative positioning of associated devices, see DIAL (as modified). Excludes STEERING WHEEL.
Alternate Parts: 5132079252, 5-13-2079-25-2, 5132079242, 5-13-2079-24-2, 5RQL2, T0518, T0302, T0518, T0302, 5RQL2, 25077253, 25077-25-3, T0518, T0302, 91764, PY17F, G22194, 5340-00-449-4865, 00-449-4865, 5340004494865, 004494865
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1961 | 00-449-4865 | 13379 ( HANDWHEEL ) |

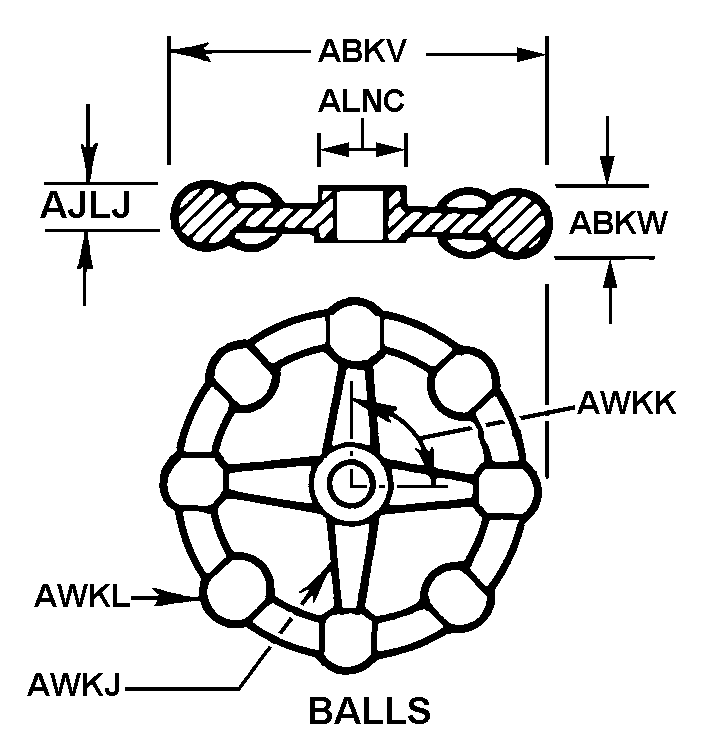

REFERENCE DRAWINGS & PICTURES
BALLS
ROUND
Cross Reference | NSN 5340-00-449-4865
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5-13-2079-25-2 | 81337 | ARMY, UNITED STATES DEPARTMENT OFTHE |
| 5-13-2079-24-2 | 81337 | ARMY, UNITED STATES DEPARTMENT OFTHE |
| 5RQL2 | 5RQL2 | DRS ENVIRONMENTAL SYSTEMS, INC.DBA D R S |
| T0518 | 5RQL2 | DRS ENVIRONMENTAL SYSTEMS, INC.DBA D R S |
| T0302 | 5RQL2 | DRS ENVIRONMENTAL SYSTEMS, INC.DBA D R S |
| T0518 | 90598 | ENGINEERED AIR SYSTEMS INC.DBA DRS SUSTAINMENT SYSTEMS |
| T0302 | 90598 | ENGINEERED AIR SYSTEMS INC.DBA DRS SUSTAINMENT SYSTEMS |
| 5RQL2 | 92878 | HDT EXPEDITIONARY SYSTEMS, INC. |
| 25077-25-3 | 92878 | HDT EXPEDITIONARY SYSTEMS, INC. |
| T0518 | 92878 | HDT EXPEDITIONARY SYSTEMS, INC. |
| T0302 | 92878 | HDT EXPEDITIONARY SYSTEMS, INC. |
| 91764 | 94833 | KECO INDUSTRIES INC. |
| PY17F | 92870 | SILENT GLOW CORP THE |
| G22194 | 93084 | VBM CORP |
Technical Data | NSN 5340-00-449-4865
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | IRON, CAST OVERALL |
| SURFACE TREATMENT AND LOCATION | PAINT OVERALL |
| COLOR AND LOCATION | OLIVE DRAB OVERALL |
| HANDWHEEL STYLE | BALLS |
| OUTSIDE DIAMETER | 2.100 INCHES NOMINAL |
| OVERALL HEIGHT | 0.525 INCHES NOMINAL |
| HUB LENGTH | 0.375 INCHES NOMINAL |
| HUB OUTSIDE DIAMETER | 0.562 INCHES NOMINAL |
| SPOKE ANGLE IN DEG | 60.0 |
| SPOKE QUANTITY | 6 |
| GRIP QUANTITY | 6 |
| DRIVE FACILITY STYLE | ROUND |
| INSIDE DIAMETER | 0.312 INCHES NOMINAL |
| DRIVE FACILITY THREAD SERIES DESIGNATOR | UNC |
| THREAD DIAMETER | 0.312 INCHES NOMINAL |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| HANDLE ROTATING FEATURE | NOT INCLUDED |
| HANDLE COUNTERBALANCING WEIGHT | NOT INCLUDED |
| RATCHET | NOT INCLUDED |
