NSN 5340-00-449-3515
Part Details | ACCESS COVER
5340-00-449-3515 A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above.
Alternate Parts: 2592807, 5340-00-449-3515, 00-449-3515, 5340004493515, 004493515
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAY 15, 1970 | 00-449-3515 | 29785 ( COVER, ACCESS ) |
REFERENCE DRAWINGS & PICTURES
RECTANGLE, NO HOLES

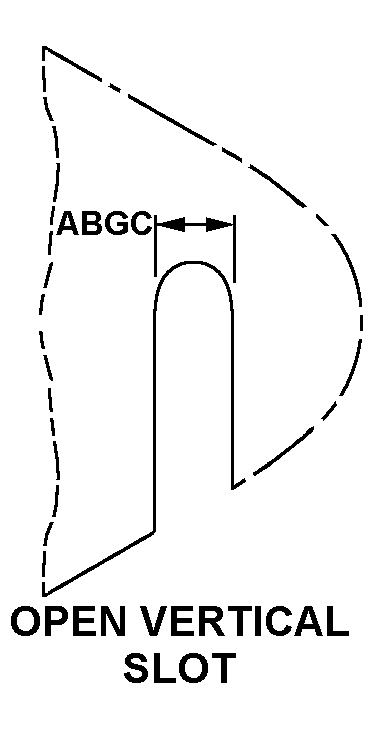

OPEN VERTICAL SLOT
Cross Reference | NSN 5340-00-449-3515
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2592807 | 07187 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
Technical Data | NSN 5340-00-449-3515
| Characteristic | Specifications |
|---|---|
| PERIPHERAL SHAPE STYLE | 26 RECTANGLE, NO HOLES |
| WIDTH | 1.297 INCHES NOMINAL |
| LENGTH | 3.166 INCHES NOMINAL |
| MOUNTING OPENING SHAPE STYLE | OPEN VERTICAL SLOT |
| SLOT WIDTH | 0.104 INCHES NOMINAL |
| FSC APPLICATION DATA | AMPLIFIER,AUTOPILOT |
