Part Details | FRICTION CATCH STUD
5340-00-449-3035 A rigid metallic item with facilities for mounting to a door, sill, panel, or the like. It is the male component of a CATCH, FRICTION, designed to be inserted and retained by a RECEPTACLE, FRICTION CATCH STUD. For items having a spring actuated plunger, ball, bolt, latch, or the like, see CATCH, FRICTION.
Alternate Parts: P1004216, P100-421-6, 5340-00-449-3035, 00-449-3035, 5340004493035, 004493035
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-449-3035 | 18366 ( STUD, FRICTION CATCH ) |
REFERENCE DRAWINGS & PICTURES

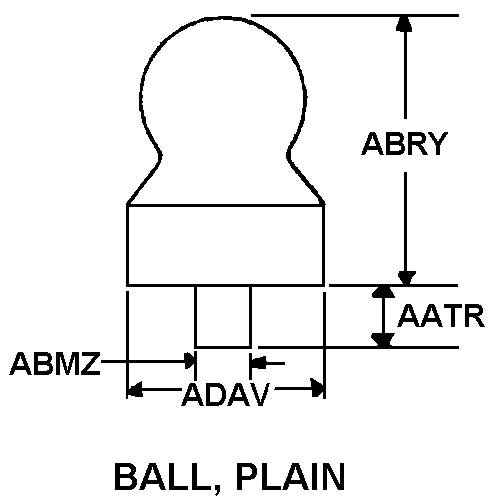

BALL, PLAIN
Cross Reference | NSN 5340-00-449-3035
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| P100-421-6 | 78553 | TINNERMAN PALNUT ENGINEEREDPRODUCTS, INC. |
Technical Data | NSN 5340-00-449-3035
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BALL, PLAIN |
| SHANK LENGTH | 0.187 INCHES NOMINAL |
| DIAMETER | 0.094 INCHES NOMINAL |
| LENGTH | 0.421 INCHES NOMINAL |
| OVERALL DIAMETER | 0.250 INCHES NOMINAL |
