NSN 5340-00-449-0502
Part Details | CLAMPING CATCH
5340-00-449-0502 A positive fastening device consisting of a mountable base with an extended loop, claw, or the like. It may include a catch strike and mounting hardware for its complete installation on flat surfaces. The loop, claw, or the like can be manually engaged or disengaged readily for the purpose of securing the mating sections of a suitcase, locker-trunk, shipping and storage container, prefabricated building, tool chest or the like. Excludes CATCH, ELBOW; CATCH, FLUSH; CATCH, FRICTION; and LATCH or LOCK (as modified).
Alternate Parts: 44000, 5340-00-449-0502, 00-449-0502, 5340004490502, 004490502
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-449-0502 | 26525 ( CATCH, CLAMPING ) |

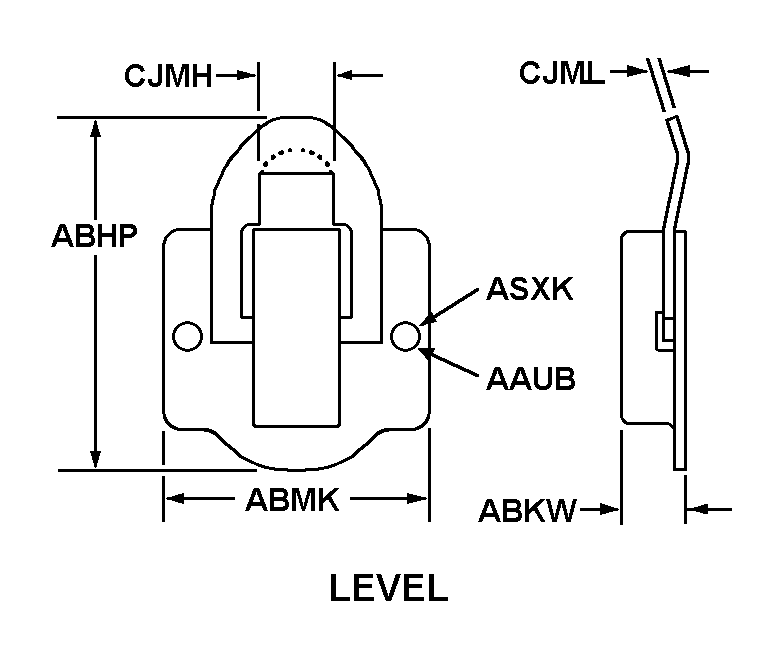

REFERENCE DRAWINGS & PICTURES
LEVEL
Cross Reference | NSN 5340-00-449-0502
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 44000 | 21192 | EXCELSIOR HARDWARE CO |
Technical Data | NSN 5340-00-449-0502
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | LEVEL |
| HOLE DIAMETER | 0.062 INCHES NOMINAL |
| ENGAGING SURFACE THICKNESS | 0.094 INCHES NOMINAL |
| HOLE QUANTITY | 2 |
| OVERALL LENGTH | 2.000 INCHES NOMINAL |
| OVERALL WIDTH | 1.000 INCHES NOMINAL |
| OVERALL HEIGHT | 0.469 INCHES NOMINAL |
| DESIGN TYPE | CLAW ENGAGING |
| OPERATION METHOD | LEVER HANDLE |
