NSN 5340-00-448-9046
Part Details | EXPANSION SHIELD
5340-00-448-9046 An item for inserting in a hole, usually in masonry, designed to be expanded either by means of a setting tool or by the insertion of the bolt, screw or nail for mounting or attaching another object. It may include the bolt, screw or nail.
Alternate Parts: 05216, 5340-00-448-9046, 00-448-9046, 5340004489046, 004489046
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAY 26, 1974 | 00-448-9046 | 08322 ( SHIELD, EXPANSION ) |
REFERENCE DRAWINGS & PICTURES

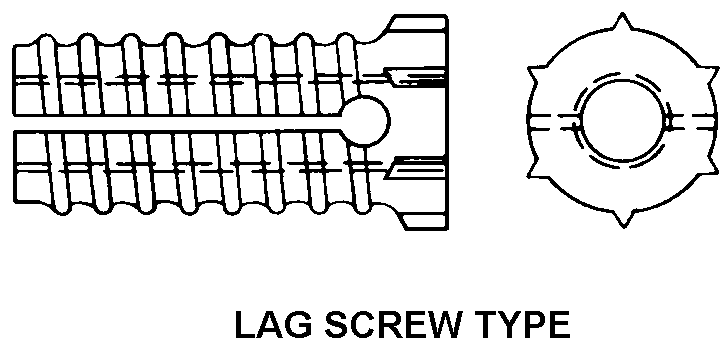

LAG SCREW TYPE
Cross Reference | NSN 5340-00-448-9046
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 05216 | 72629 | GENERAL CABLE CODIV OF GK TECHNOLOGIES INC |
Technical Data | NSN 5340-00-448-9046
| Characteristic | Specifications |
|---|---|
| MATERIAL | LEAD ALLOY |
| STYLE DESIGNATOR | LAG SCREW TYPE |
| HOLE ACCOMMODATION DIAMETER | 0.250 INCHES NOMINAL |
| INSERT TYPE FOR WHICH DESIGNED | WOOD SCREW |
| INSERT SIZE | NO. 6 TO NO. 8 |
| UNIT QUANTITY | 1 |
| OVERALL LENGTH | 1.000 INCHES NOMINAL |
| THREAD PROVISION | UNTHREADED |
| FASTENER TYPE | SCREW |
