NSN 5340-00-448-4221
Part Details | DUST AND MOISTURE SEAL BOOT
5340-00-448-4221 A flexible, nonmetallic item designed to prevent entry of dust, moisture and other contaminants into critical areas around shafts, levers, electrical wires and hoses. Sealing may be either static or dynamic. The item may include mounting hardware (support plates, clamps and the like). Excludes BELLOWS, PROTECTION; GROMMET, NONMETALLIC; and CABLE NIPPLE, ELECTRICAL. See also CAP, ELECTRICAL; CAP, PROTECTIVE, DUST AND MOISTURE SEAL; and SHIELD, ELECTRICAL CONNECTOR.
Alternate Parts: 11731297, 11731297, 5340-00-448-4221, 00-448-4221, 5340004484221, 004484221
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 04, 1971 | 00-448-4221 | 19302 ( BOOT, DUST AND MOISTURE SEAL ) |

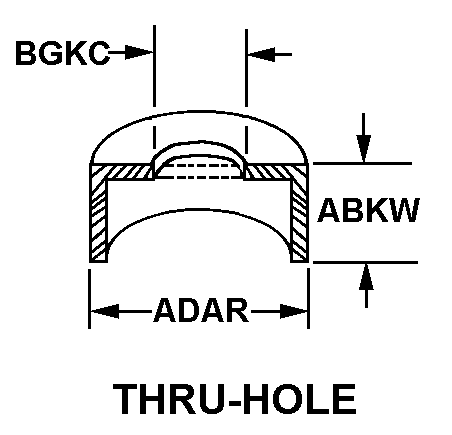

REFERENCE DRAWINGS & PICTURES
THRU-HOLE
Cross Reference | NSN 5340-00-448-4221
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11731297 | 6K404 | BASIC RUBBER AND PLASTICS CO. |
| 11731297 | 19200 | US ARMY ARDEC RDECOM |
Technical Data | NSN 5340-00-448-4221
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | THRU-HOLE |
| OVERALL HEIGHT | 1.1562 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 2.8750 INCHES NOMINAL |
| OPENING INSIDE DIAMETER | 1.5937 INCHES NOMINAL |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING DEVICE QUANTITY | 3 |
