NSN 5340-00-445-5306
Part Details | HANDWHEEL
5340-00-445-5306 An item having a major diameter of 3 or more inches (76.2mm) other than items having spoked or sumulated spoked construction, which may be under 3 inches (76.2mm) designed to be gripped by the hand to transmit rotary motion to other devices through a center axis, fabricated in the form of a solid body with simulated spokes or a recessed surface between the rim and the hub, or it may be built up in the form of a frame having a central hub connected to the rim by the spokes. It may have reference markings in the form of dots, arrows, hairline, etc., to indicate the relative position and/or direction of rotation of the item(s) with which it is used. It may also include an integral ratchet device. For similar items having a maximum diameter of less than 3 inches (76.2mm), see KNOB. For items calibrated in units or series of divisions denoting relative positioning of associated devices, see DIAL (as modified). Excludes STEERING WHEEL.
Alternate Parts: MS213121, MS21312-1, 5340-00-445-5306, 00-445-5306, 5340004455306, 004455306
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 08, 1971 | 00-445-5306 | 13379 ( HANDWHEEL ) |
REFERENCE DRAWINGS & PICTURES
RECESSED ROUND

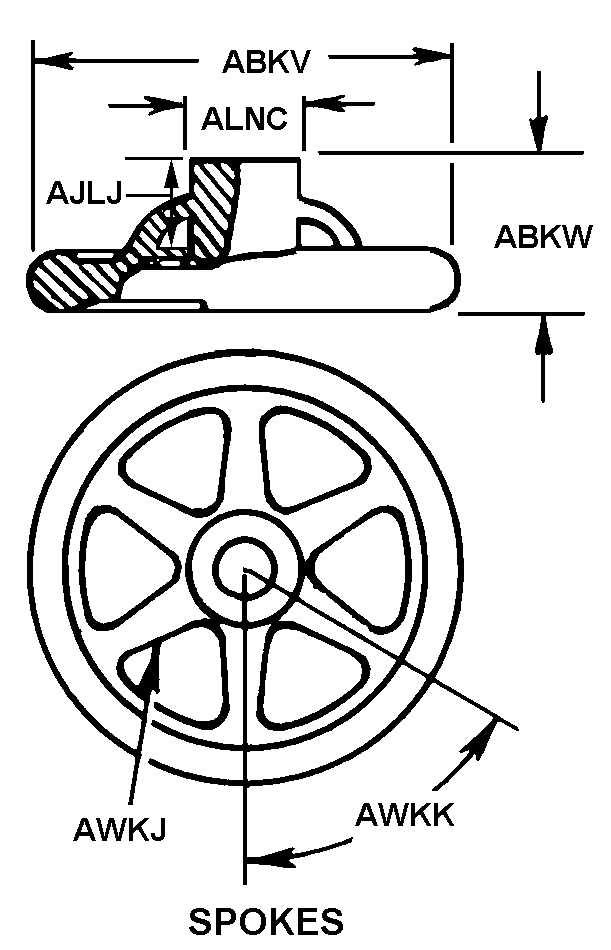

SPOKES
SINGLE KEYWAY
Cross Reference | NSN 5340-00-445-5306
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS21312-1 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
Technical Data | NSN 5340-00-445-5306
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | ALUMINUM ALLOY, QQ-A-601, ALLOY 195 WHEEL AND ALUMINUM ALLOY, 5005, H36 HANDLE AND STEEL, ASTM A108 HANDLE PIN |
| HANDWHEEL STYLE | SPOKES |
| OUTSIDE DIAMETER | 3.970 INCHES MINIMUM AND 4.030 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.489 INCHES MINIMUM AND 1.516 INCHES MAXIMUM |
| HUB LENGTH | 0.984 INCHES MINIMUM AND 1.016 INCHES MAXIMUM |
| HUB OUTSIDE DIAMETER | 0.970 INCHES MINIMUM AND 1.030 INCHES MAXIMUM |
| SPOKE ANGLE IN DEG | 60.0 |
| SPOKE QUANTITY | 6 |
| DRIVE FACILITY STYLE | SINGLE KEYWAY |
| INSIDE DIAMETER | 0.375 INCHES MINIMUM AND 0.379 INCHES MAXIMUM |
| OVERALL DEPTH | 0.984 INCHES MINIMUM AND 1.016 INCHES MAXIMUM |
| KEYWAY WIDTH | 0.063 INCHES MINIMUM AND 0.065 INCHES MAXIMUM |
| KEYWAY DEPTH | 0.037 INCHES MINIMUM AND 0.042 INCHES MAXIMUM |
| HANDLE MOUNTING METHOD | PIN |
| HANDLE STYLE | RECESSED ROUND |
| HANDLE LENGTH | 2.062 INCHES NOMINAL |
| HANDLE ROTATING FEATURE | INCLUDED |
| HANDLE COUNTERBALANCING WEIGHT | NOT INCLUDED |
| RATCHET | NOT INCLUDED |
