NSN 5340-00-444-5286
Part Details | PLUG BUTTON
5340-00-444-5286 An item, usually made of metal, having a finished cap with spring tension prongs on the underside, or spring wire fitted into the sides of the walls. When inserted in punched or drilled holes in metal sheets or tubes, the expanding action of the prongs or spring wire holds the item securely in place. It is specifically designed to close a hole; to cover a hole through which passes a shaft, cable, or the like; or to provide a perforated cover for a vent or breather hole. Excludes FASTENER, SPRING TENSION, TRIM.
Alternate Parts: 100050B500, 100-050B500, 100050B500, 100-050B500, 5340-00-444-5286, 00-444-5286, 5340004445286, 004445286
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | DEC 18, 1970 | 00-444-5286 | 11251 ( BUTTON, PLUG ) |
REFERENCE DRAWINGS & PICTURES

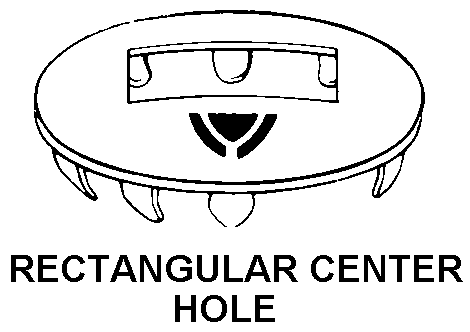

RECTANGULAR CENTER HOLE
Cross Reference | NSN 5340-00-444-5286
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 100-050B500 | 97499 | BELL HELICOPTER TEXTRON INC.DBA BELL HELICOPTER |
| 100-050B500 | 28520 | HEYCO INCDBA HEYCO PRODUCTS |
Technical Data | NSN 5340-00-444-5286
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYAMIDE |
| STYLE DESIGNATOR | 9 RECTANGULAR CENTER HOLE |
| HEAD HEIGHT | 0.062 INCHES NOMINAL |
| OVERALL HEIGHT | 0.406 INCHES NOMINAL |
| HEAD OUTSIDE DIAMETER | 0.578 INCHES NOMINAL |
| BOTTOM OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |
| HOLE ACCOMMODATION DIAMETER | 0.500 INCHES NOMINAL |
| MATERIAL ACCOMMODATED THICKNESS | 0.125 INCHES MAXIMUM |
