NSN 5340-00-444-0131
Part Details | ACCESS COVER
5340-00-444-0131 A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above.
Alternate Parts: 144660, 5340-00-444-0131, 00-444-0131, 5340004440131, 004440131
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | FEB 18, 1972 | 00-444-0131 | 29785 ( COVER, ACCESS ) |
REFERENCE DRAWINGS & PICTURES
CIRCULAR RECESS

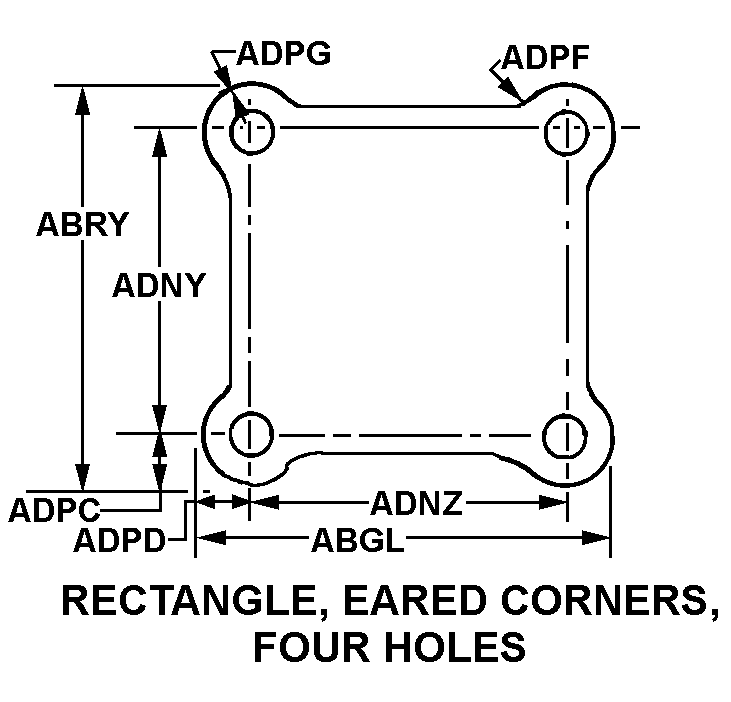

RECTANGLE, EARED CORNERS, FOUR HOLES
THREADED HOLE
Cross Reference | NSN 5340-00-444-0131
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 144660 | 15434 | CUMMINS INC. |
Technical Data | NSN 5340-00-444-0131
| Characteristic | Specifications |
|---|---|
| SECURING DEVICE TYPE | THREADED FASTENER |
| MATERIAL | ALUMINUM |
| PERIPHERAL SHAPE STYLE | RECTANGLE, EARED CORNERS, FOUR HOLES |
| WIDTH | 2.240 INCHES NOMINAL |
| LENGTH | 2.240 INCHES NOMINAL |
| DISTANCE FROM FIRST HOLE CENTERLINE TO END ALONG LENGTH | 0.310 INCHES NOMINAL |
| DISTANCE FROM FIRST HOLE CENTERLINE TO END ALONG WIDTH | 0.310 INCHES NOMINAL |
| INVERTED RADIUS | 0.031 INCHES NOMINAL |
| EAR RADIUS | 0.310 INCHES NOMINAL |
| DISTANCE BETWEEN HOLES ALONG LENGTH | 1.650 INCHES MINIMUM AND 1.670 INCHES MAXIMUM |
| DISTANCE BETWEEN HOLES ALONG WIDTH | 1.650 INCHES MINIMUM AND 1.670 INCHES MAXIMUM |
| CROSS-SECTIONAL SHAPE STYLE | 0 CIRCULAR RECESS |
| INSIDE DIAMETER | 1.960 INCHES MINIMUM AND 1.980 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.031 INCHES NOMINAL |
| FIRST RECESS INSIDE HEIGHT | 0.230 INCHES NOMINAL |
| INSIDE CORNER RADIUS | 0.015 INCHES NOMINAL |
| BODY THICKNESS | 0.188 INCHES NOMINAL |
| MOUNTING OPENING SHAPE STYLE | THREADED HOLE |
| FEATURES PROVIDED | SEALING CAPABILITY |
| FSC APPLICATION DATA | FUEL SYSTEM,DIESEL ENGINE,NONAIRCRAFT |
