NSN 5340-00-443-1005
Part Details | ACCESS COVER
5340-00-443-1005 A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above.
Alternate Parts: 11644043, 5340-00-443-1005, 00-443-1005, 5340004431005, 004431005
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | APR 03, 1969 | 00-443-1005 | 29785 ( COVER, ACCESS ) |
REFERENCE DRAWINGS & PICTURES
CIRCULAR RECESS
RECTANGLE, MULTI HOLES

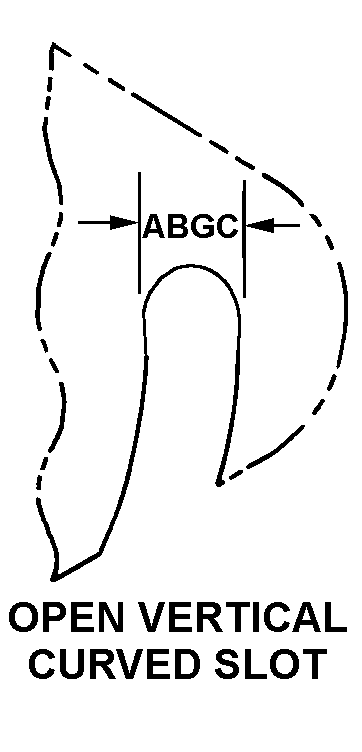

OPEN VERTICAL CURVED SLOT
Cross Reference | NSN 5340-00-443-1005
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11644043 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5340-00-443-1005
| Characteristic | Specifications |
|---|---|
| SECURING DEVICE TYPE | SPECIAL |
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM-A569 ASSN STD SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | PHOSPHATE AND ENAMEL ALKYD |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | TT-C-490,TYPE 1 FED SPEC 1ST TREATMENT RESPONSE AND TT-P-664 FED SPEC 2ND TREATMENT RESPONSE |
| PERIPHERAL SHAPE STYLE | RECTANGLE, MULTI HOLES |
| OUTSIDE DIAMETER | 4.880 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | 6 CIRCULAR RECESS |
| BODY THICKNESS | 0.120 INCHES NOMINAL |
| MOUNTING OPENING SHAPE STYLE | OPEN VERTICAL CURVED SLOT |
| SLOT WIDTH | 0.380 INCHES NOMINAL |
| SPECIAL FEATURES | ITEM INCLUDES PLATE-11644043-4; 2 PLATES-11644043-2;COVER-11644043-1 |
