NSN 5340-00-440-2751
Part Details | EXPANSION SHIELD
5340-00-440-2751 An item for inserting in a hole, usually in masonry, designed to be expanded either by means of a setting tool or by the insertion of the bolt, screw or nail for mounting or attaching another object. It may include the bolt, screw or nail.
Alternate Parts: 342500800, 3425-00800, 5340-00-440-2751, 00-440-2751, 5340004402751, 004402751
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAY 20, 1974 | 00-440-2751 | 08322 ( SHIELD, EXPANSION ) |
REFERENCE DRAWINGS & PICTURES

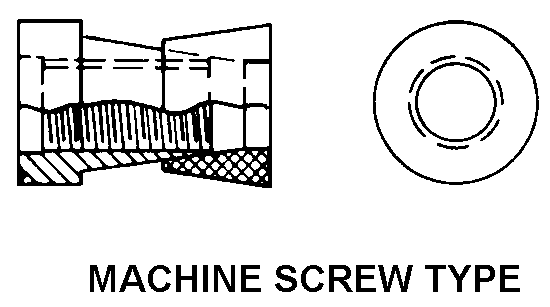

MACHINE SCREW TYPE
Cross Reference | NSN 5340-00-440-2751
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3425-00800 | 78206 | STAR EXPANSION CO |
Technical Data | NSN 5340-00-440-2751
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| STYLE DESIGNATOR | MACHINE SCREW TYPE |
| INSERT TYPE FOR WHICH DESIGNED | BOLT |
| INSERT SIZE | 0.375 IN. DIA |
| UNIT QUANTITY | 1 |
| THREAD PROVISION | THREADED |
| FEATURES PROVIDED | INSTALLATION SETTING TOOL |
