NSN 5340-00-438-5128
Part Details | T PLATE
5340-00-438-5128 A flat, T-shaped plate used to join two pieces of material at a flush butt joint by means of screws, bolts and the like and so designed as to eliminate lateral movement.
Alternate Parts: 9550121, 955012-1, 5340-00-438-5128, 00-438-5128, 5340004385128, 004385128
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | NOV 24, 1969 | 00-438-5128 | 06636 ( PLATE, T ) |

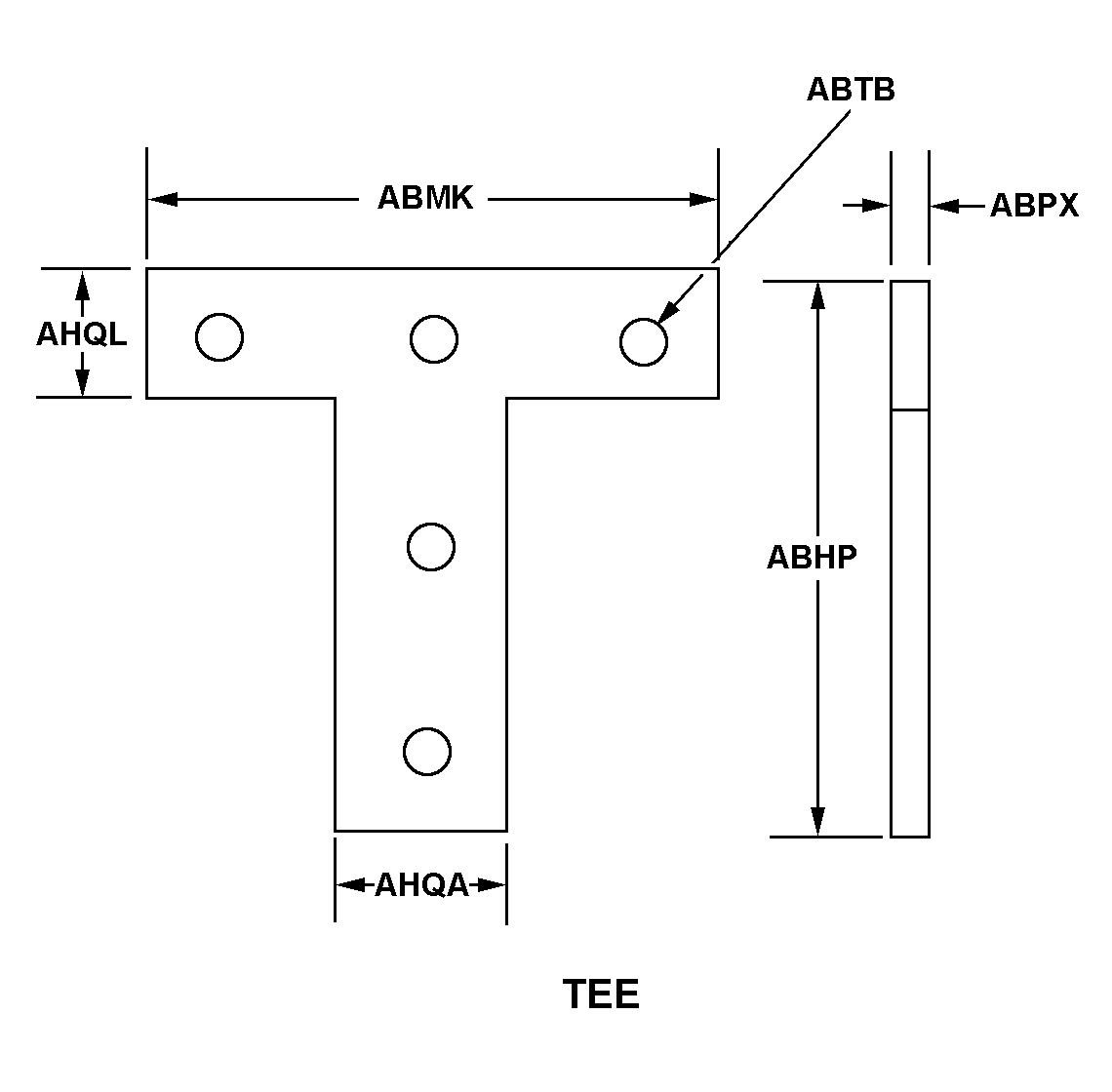

REFERENCE DRAWINGS & PICTURES
TEE
Cross Reference | NSN 5340-00-438-5128
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 955012-1 | 70210 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
Technical Data | NSN 5340-00-438-5128
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5059 MIL SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | PASSIVATE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-S-5002 MIL SPEC SINGLE TREATMENT RESPONSE |
| STYLE DESIGNATOR | TEE |
| OVERALL LENGTH | 0.500 INCHES MINIMUM AND 0.530 INCHES MAXIMUM |
| OVERALL WIDTH | 0.590 INCHES MINIMUM AND 0.620 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.020 INCHES NOMINAL |
| CENTER SECTION WIDTH | 0.060 INCHES MINIMUM AND 0.080 INCHES MAXIMUM |
| TOP SECTION WIDTH | 0.070 INCHES MINIMUM AND 0.090 INCHES MAXIMUM |
| SPECIAL FEATURES | ROUNDED ENDS,NO MOUNTING HOLES PROVIDED |
