NSN 5340-00-437-8949
Part Details | ESCUTCHEON PLATE
5340-00-437-8949 An item of various shapes designed to be used as a mounting plate and/or ornament for door handles, window regulator handles, control rods, and the like.
Alternate Parts: AR753, AR75-3, 401691, 40-169-1, 071000, 07-1000, 0710001, 07-1000-1, 5340-00-437-8949, 00-437-8949, 5340004378949, 004378949
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | SEP 03, 1969 | 00-437-8949 | 20261 ( ESCUTCHEON PLATE ) |

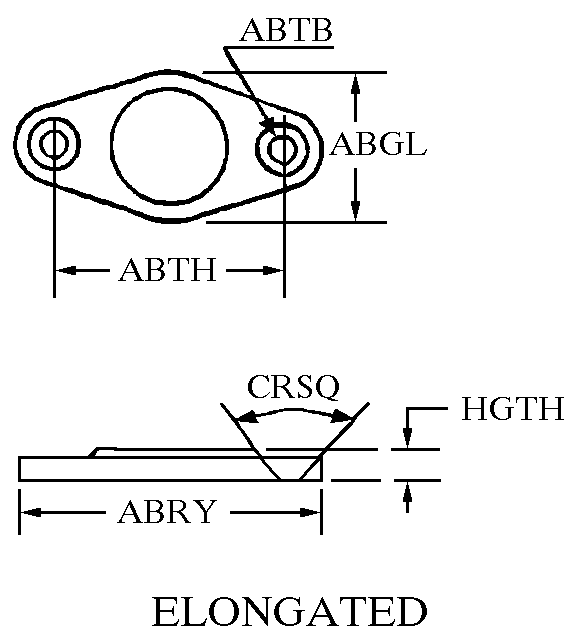

REFERENCE DRAWINGS & PICTURES
ELONGATED
Cross Reference | NSN 5340-00-437-8949
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AR75-3 | 80477 | ADAMS RITE AEROSPACE, INC.DIV ADAMS RITE AEROSPACE |
| 40-169-1 | 97499 | BELL HELICOPTER TEXTRON INC.DBA BELL HELICOPTER |
| 07-1000 | 20293 | IRVING TOOL & MFG. CO. INC. |
| 07-1000-1 | 20293 | IRVING TOOL & MFG. CO. INC. |
Technical Data | NSN 5340-00-437-8949
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ELONGATED |
| WIDTH | 1.220 INCHES NOMINAL |
| LENGTH | 2.280 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.171 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 2.124 INCHES NOMINAL |
| HEIGHT | 0.218 INCHES NOMINAL |
| COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |
| SPECIAL FEATURES | HOLE DIA 0.171 IN. NOM;O/A LGTH 2.880 IN.;C TO C DISTANCE BETWEEN HOLES 2.125 IN. NOM |
| END ITEM IDENTIFICATION | W/S: HELICOPTER, UTILITY/SEARCH AND RECOVERY UH-1N; HELICOPTER, HH-53H PAVE LOW; HELICOPTER, KIOWA OH-58 A&C; HELICOPTER, SUPER JOLLY H-53; HELICOPTER, IROQUOIS UH-1; HELICOPTER, GREEN GIANT H-3; HELICOPTER, IROQUOIS HH/UH-1; AIRCRAFT, B-2 BOMBER (ATB) |
