NSN 5340-00-437-7211
Part Details | RETAINING STRAP
5340-00-437-7211 A preformed item of rigid or semirigid material designed to partially surround other items such as cable(s), conduit(s), pipe(s), tube(s), or rod(s) or to completely surround them by means of a bridge strap(s) (which does not tightly clamp against the complete periphery). It is designed to retain and/or position the items close to a structure. It may be fastened to the structure on one end, both ends, or in the center. See also CLAMP, LOOP. Excludes BRACKET, PIPE; STRAP, LEATHER and STRAP, WEBBING.
Alternate Parts: 5340004377211, 109354432, 10935443-2, 5340-00-437-7211, 00-437-7211, 5340004377211, 004377211
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | SEP 03, 1969 | 00-437-7211 | 05072 ( STRAP, RETAINING ) |

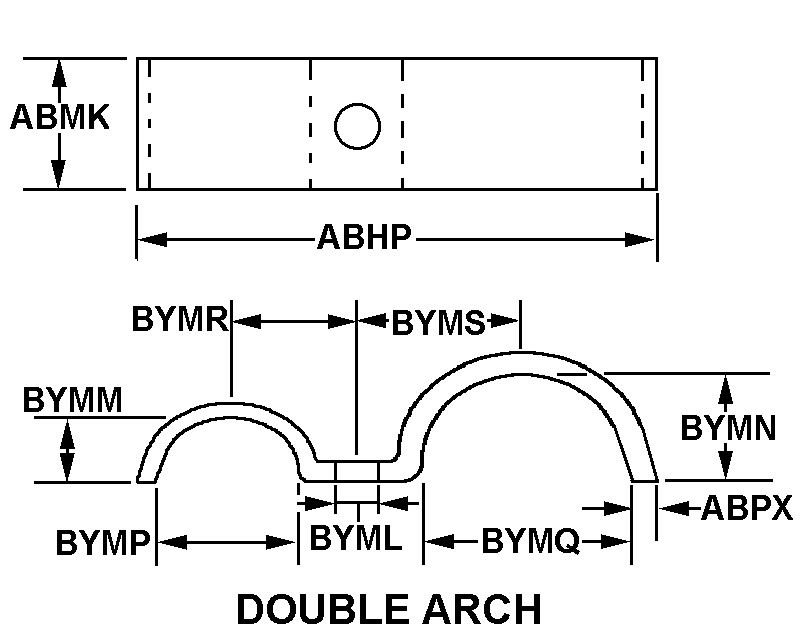

REFERENCE DRAWINGS & PICTURES
DOUBLE ARCH
Cross Reference | NSN 5340-00-437-7211
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5340004377211 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| 10935443-2 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5340-00-437-7211
| Characteristic | Specifications |
|---|---|
| MATERIAL | 1$2$DST0301$DST0302$DST0304$DST0080$DST0305$DST0309$DST0310$DST0316$DST0082$DST0321$DST0323$DST0347$DST0348$DST0410$DST0420$DST0430$DST0446 |
| STYLE DESIGNATOR | DOUBLE ARCH |
| OVERALL WIDTH | 0.750 INCHES NOMINAL |
| MOUNTING HOLE SIZE | 0.340 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN ARCH AND MOUNTING HOLE | 1.720 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN LARGE ARCH AND MOUNTING HOLE | 1.720 INCHES NOMINAL |
| CUSHION | NOT INCLUDED |
| MOUNTING PAD | NOT INCLUDED |
