NSN 5340-00-435-1953
Part Details | WEBBING STRAP
5340-00-435-1953 A narrow strip of webbing cut to a definite length, having one or both ends processed. It is usually designed for, and may have, one or more attachments or fasteners, such as BUCKLE; LOOP, STRAP FASTENER; strap end clip; RING, DEE; Hook; and the like. Excludes STRAP, BERTH, MATTRESS RETAINING; STRAP, CHIN; safety straps; and WEBBING, TEXTILE. Do not use if a more specific item name applies.
Alternate Parts: FE11068A055015, FE11068A055-015, FE11068A055015, FE11068A055-015, 10165752, 5340-00-435-1953, 00-435-1953, 5340004351953, 004351953
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | FEB 09, 1972 | 00-435-1953 | 20659 ( STRAP, WEBBING ) |
REFERENCE DRAWINGS & PICTURES

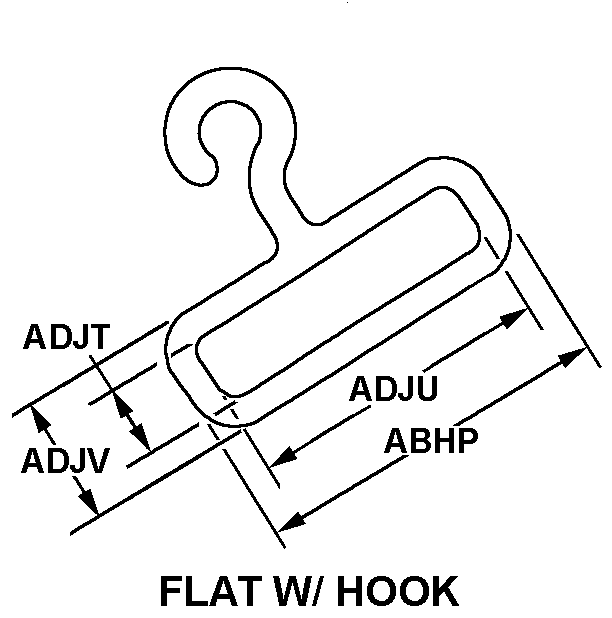

FLAT W/HOOK
CENTER BAR WITH TONGUE
Cross Reference | NSN 5340-00-435-1953
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FE11068A055-015 | 01276 | EATON-AEROQUIP INCDIV FLUID CONNECTORS PRODUCTS |
| FE11068A055-015 | 00624 | EATON-AEROQUIP LLC.DBA AEROSPACE GROUP |
| 10165752 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5340-00-435-1953
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYETHYLENE TEREPHTHALATE |
| WIDTH | 1.750 INCHES NOMINAL |
| LENGTH | 52.300 INCHES NOMINAL |
| END TYPE | BOTH W/ATTACHMENTS |
| COLOR | OLIVE DRAB |
| END ATTACHMENT/FASTENING FACILITY | LOOP AND BUCKLE |
| BUCKLE STYLE DESIGNATOR | 1 CENTER BAR WITH TONGUE |
| BUCKLE MATERIAL | STEEL |
| BUCKLE SURFACE TREATMENT | CADMIUM, QQ-P-416, TYPE 2, CLASS 3 |
| BUCKLE LOCATION | 13.500 IN. FROM END |
| FASTENED BUCKLE FEATURE | INCLUDED |
| BUCKLE FASTENING METHOD | SEWED |
| LOOP STYLE DESIGNATOR | FLAT W/HOOK |
| LOOP MATERIAL | STEEL |
| FASTENED LOOP FEATURE | INCLUDED |
| LOOP FASTENING METHOD | SEWED |
| LOOP LOCATION | BOTH ENDS |
