NSN 5340-00-434-4683
Part Details | PLUG BUTTON
5340-00-434-4683 An item, usually made of metal, having a finished cap with spring tension prongs on the underside, or spring wire fitted into the sides of the walls. When inserted in punched or drilled holes in metal sheets or tubes, the expanding action of the prongs or spring wire holds the item securely in place. It is specifically designed to close a hole; to cover a hole through which passes a shaft, cable, or the like; or to provide a perforated cover for a vent or breather hole. Excludes FASTENER, SPRING TENSION, TRIM.
Alternate Parts: 1000701, 100-070-1, XX51075K1110, 5340-00-434-4683, 00-434-4683, 5340004344683, 004344683
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | OCT 28, 1972 | 00-434-4683 | 11251 ( BUTTON, PLUG ) |
REFERENCE DRAWINGS & PICTURES

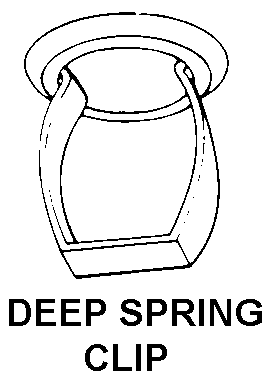

DEEP SPRING CLIP
Cross Reference | NSN 5340-00-434-4683
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 100-070-1 | 97499 | BELL HELICOPTER TEXTRON INC.DBA BELL HELICOPTER |
| XX51075K1110 | 83058 | TRW ASSEMBLIES AND FASTENERS GROUPFASTENERS DIV |
Technical Data | NSN 5340-00-434-4683
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1010 |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE 1010 ASSN STD SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | NICKEL |
| STYLE DESIGNATOR | DEEP SPRING CLIP |
| HEAD HEIGHT | 0.210 INCHES NOMINAL |
| OVERALL HEIGHT | 1.340 INCHES NOMINAL |
| HEAD OUTSIDE DIAMETER | 1.000 INCHES NOMINAL |
