NSN 5340-00-434-4622
Part Details | SWIVEL CASTER
5340-00-434-4622 A caster designed to allow rotation of the wheel(s) or spherical constructed item in more than one plane.
Alternate Parts: 37075, 10246200, 5340-00-434-4622, 00-434-4622, 5340004344622, 004344622
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | FEB 18, 1972 | 00-434-4622 | 06188 ( CASTER, SWIVEL ) |
REFERENCE DRAWINGS & PICTURES

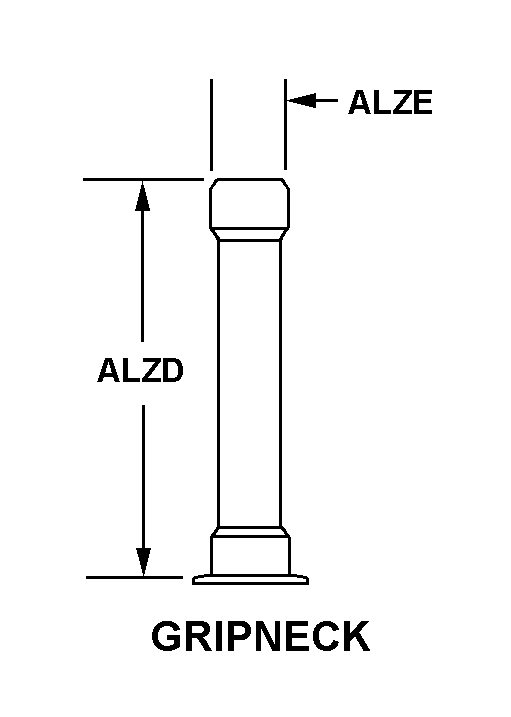

GRIPNECK
SWIVEL OFFSET
Cross Reference | NSN 5340-00-434-4622
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 37075 | 52793 | SAGINAW PRODUCTS CORPORATIONDBA CIGNYS |
| 10246200 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5340-00-434-4622
| Characteristic | Specifications |
|---|---|
| SAFE OPERATING LOAD RATING | 2000.0 POUNDS MAXIMUM |
| STYLE DESIGNATOR | SWIVEL OFFSET |
| STEM STYLE | 4 GRIPNECK |
| STEM LENGTH | 2.320 INCHES MINIMUM AND 2.440 INCHES MAXIMUM |
| STEM DIAMETER | 1.495 INCHES MINIMUM AND 1.505 INCHES MAXIMUM |
| WHEEL QUANTITY | 2 |
| TEST DATA DOCUMENT | 18876-10246628 DRAWING (THIS IS THE BASIC GOVERNING DRAWING, SUCH AS A CONTRACTOR DRAWING, ORIGINAL EQUIPMENT MANUFACTURER DRAWING, ETC.; EXCLUDES ANY SPECIFICATION, STANDARD OR OTHER DOCUMENT THAT MAY BE REFERENCED IN A BASIC GOVERNING DRAWING) |
