NSN 5340-00-433-0108
Part Details | FRICTION CATCH STUD
5340-00-433-0108 A rigid metallic item with facilities for mounting to a door, sill, panel, or the like. It is the male component of a CATCH, FRICTION, designed to be inserted and retained by a RECEPTACLE, FRICTION CATCH STUD. For items having a spring actuated plunger, ball, bolt, latch, or the like, see CATCH, FRICTION.
Alternate Parts: P101473495, P101-473-495, P10147324, P101-473-24, 11155222, 5340-00-433-0108, 00-433-0108, 5340004330108, 004330108
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-433-0108 | 18366 ( STUD, FRICTION CATCH ) |
REFERENCE DRAWINGS & PICTURES

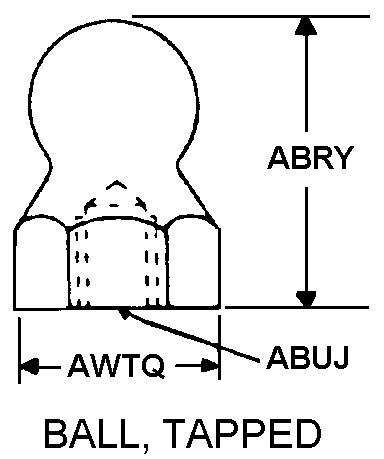

BALL, TAPPED
Cross Reference | NSN 5340-00-433-0108
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| P101-473-495 | 78553 | TINNERMAN PALNUT ENGINEEREDPRODUCTS, INC. |
| P101-473-24 | 78553 | TINNERMAN PALNUT ENGINEEREDPRODUCTS, INC. |
| 11155222 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5340-00-433-0108
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BALL, TAPPED |
| LENGTH | 0.473 INCHES NOMINAL |
| DISTANCE ACROSS FLATS | 0.250 INCHES NOMINAL |
| THREAD SIZE | NO. 6 (0.138 IN.) -32 NC2- |
