NSN 5340-00-432-1996
Part Details | NUT AND BOLT LOCKING PLATE
5340-00-432-1996 A relatively thin metal item of various shapes, having two or more bolt holes and locking ears or tabs. The item is designed to be inserted on the bolts and the ears or tabs bent against the wrenching flat(s) of the bolt head or nut to restrict loosening of the bolt or nut. The locking ears or tabs may be prebent. See also RETAINER, NUT AND BOLT.
Alternate Parts: C4TZ9A447B, C4TZ9A447B, 5340-00-432-1996, 00-432-1996, 5340004321996, 004321996
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAY 03, 1971 | 00-432-1996 | 22247 ( LOCKING PLATE, NUT AND BOLT ) |
REFERENCE DRAWINGS & PICTURES

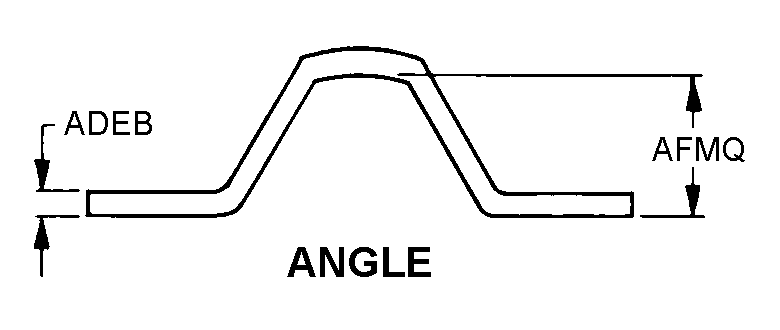

ANGLE
CONCAVE
Cross Reference | NSN 5340-00-432-1996
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C4TZ9A447B | 23040 | FORD MOTOR COFORD PARTS AND SERVICE DIV |
| C4TZ9A447B | 57526 | FORD MOTOR COMPANY |
Technical Data | NSN 5340-00-432-1996
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | CONCAVE |
| WIDTH | 0.798 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.418 INCHES NOMINAL |
| BODY WIDTH | 0.400 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 4.452 INCHES NOMINAL |
| CENTER RADIUS | 6.000 INCHES NOMINAL |
| ANGLE BETWEEN EARS IN DEG | 45.0 |
| ANGLE FROM HORIZONTAL CENTERLINE TO EAR IN DEG | 165.0 |
| EAR WIDTH | 0.190 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | ANGLE |
| PLATE THICKNESS | 0.062 INCHES NOMINAL |
| INSIDE HEIGHT | 1.000 INCHES NOMINAL |
| PREBENT LOCKING FEATURE LOCATION | ALL |
