NSN 5340-00-429-5995
Part Details | HINGED HASP
5340-00-429-5995 An item consisting of a hinged strap with a slot in one end through which a loop or staple may pass. When a loop or staple is passed through the slot in the strap, a means of securing the two parts together is afforded. It may include a staple.
Alternate Parts: P6171, 5340-00-429-5995, 00-429-5995, 5340004295995, 004295995
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-429-5995 | 06611 ( HASP, HINGED ) |
REFERENCE DRAWINGS & PICTURES

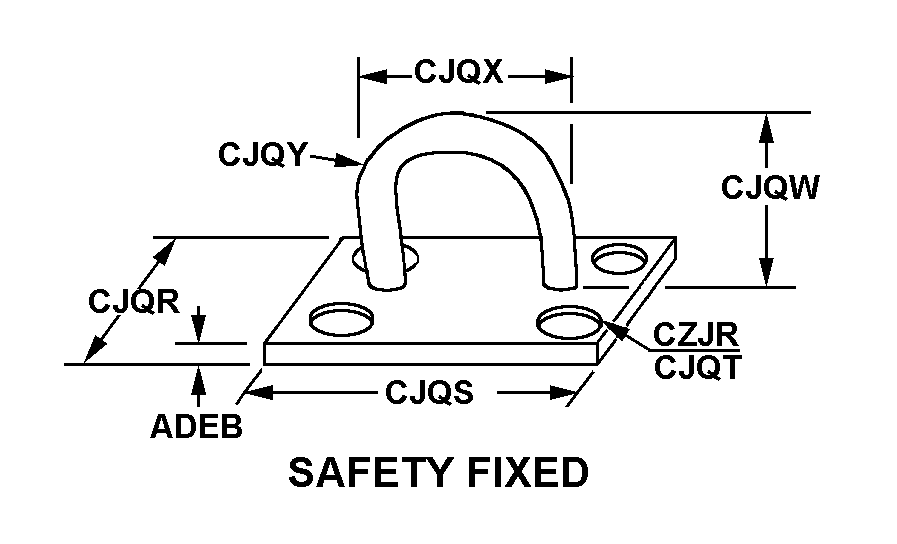

SAFETY FIXED
SINGLE SAFETY
Cross Reference | NSN 5340-00-429-5995
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| P6171 | 09605 | BOMAG USASUB OF UNITED DOMINION INDUSTRIES |
Technical Data | NSN 5340-00-429-5995
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL OVERALL |
| STYLE DESIGNATOR | SINGLE SAFETY |
| MATERIAL THICKNESS | 0.062 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.144 INCHES NOMINAL |
| SLOTTED LEAF LENGTH | 3.438 INCHES NOMINAL |
| LEAF WIDTH | 1.500 INCHES NOMINAL |
| FIXED LEAF LENGTH | 1.312 INCHES NOMINAL |
| STAPLE STYLE | SAFETY FIXED |
| REVERSIBLE FEATURE | NOT INCLUDED |
| KNUCKLE TYPE | FRICTION |
| KNUCKLE QUANTITY | 3 |
| MOUNTING HOLE QUANTITY | 5 |
