NSN 5340-00-424-5252
Part Details | ACCESS COVER
5340-00-424-5252 A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above.
Alternate Parts: 2P91, 2P91, 2P91, 5340-00-424-5252, 00-424-5252, 5340004245252, 004245252
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1961 | 00-424-5252 | 29785 ( COVER, ACCESS ) |
REFERENCE DRAWINGS & PICTURES
CIRCULAR RECESS

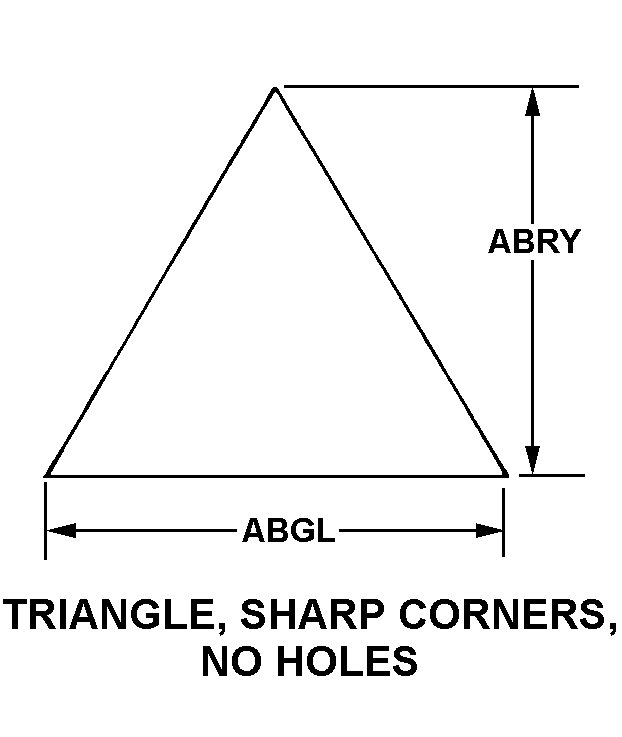

TRIANGLE, SHARP CORNERS, NO HOLES
Cross Reference | NSN 5340-00-424-5252
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2P91 | 88663 | DRESSER-RAND COINGERSOLL-RAND OPNS |
| 2P91 | 0AT62 | DRESSER-RAND COMPANYDBA RECIPROCATING PRODUCTS DIV |
| 2P91 | 30760 | INGERSOLL RAND CO |
Technical Data | NSN 5340-00-424-5252
| Characteristic | Specifications |
|---|---|
| SECURING DEVICE TYPE | ELBOW CATCH |
| MATERIAL | IRON CAST |
| PERIPHERAL SHAPE STYLE | TRIANGLE, SHARP CORNERS, NO HOLES |
| WIDTH | 5.320 INCHES NOMINAL |
| LENGTH | 5.320 INCHES NOMINAL |
| CORNER RADIUS | 0.750 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | 8 CIRCULAR RECESS |
| FLANGE THICKNESS | 0.750 INCHES NOMINAL |
| BODY THICKNESS | 1.748 INCHES MINIMUM AND 1.750 INCHES MAXIMUM |
