NSN 5340-00-185-1722
Part Details | WEBBING STRAP
5340-00-185-1722 A narrow strip of webbing cut to a definite length, having one or both ends processed. It is usually designed for, and may have, one or more attachments or fasteners, such as BUCKLE; LOOP, STRAP FASTENER; strap end clip; RING, DEE; Hook; and the like. Excludes STRAP, BERTH, MATTRESS RETAINING; STRAP, CHIN; safety straps; and WEBBING, TEXTILE. Do not use if a more specific item name applies.
Alternate Parts: BACS38A14112, BACS38A141-12, 5340-00-185-1722, 00-185-1722, 5340001851722, 001851722
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAR 07, 1973 | 00-185-1722 | 20659 ( STRAP, WEBBING ) |
REFERENCE DRAWINGS & PICTURES
END BAR WITH TONGUE

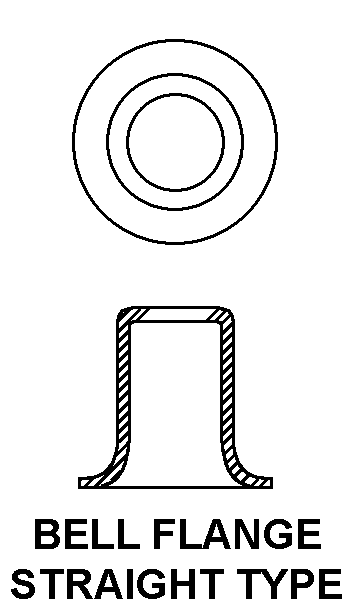

BELL FLANGE STRAIGHT TYPE

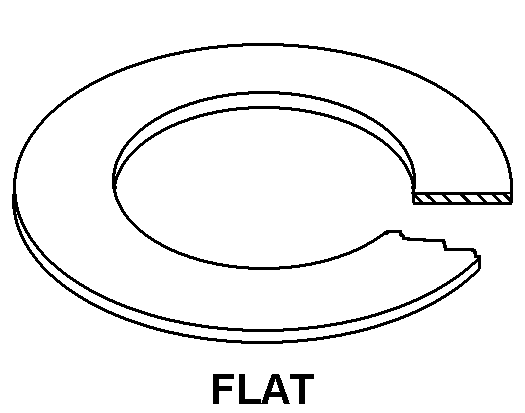

FLAT
Cross Reference | NSN 5340-00-185-1722
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BACS38A141-12 | 81205 | THE BOEING COMPANYDBA BOEING |
Technical Data | NSN 5340-00-185-1722
| Characteristic | Specifications |
|---|---|
| MATERIAL | COTTON |
| WIDTH | 1.000 INCHES NOMINAL |
| LENGTH | 41.000 INCHES NOMINAL |
| END TYPE | FOLDED |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-W-530, TYPE 3 MIL SPEC SINGLE MATERIAL RESPONSE |
| ENVIRONMENTAL PROTECTION | J ANY ACCEPTABLE |
| COLOR | OLIVE DRAB |
| FOLD TYPE | LOOSE |
| ATTACHMENT METHOD FOR WHICH DESIGNED | SEWED |
| BUCKLE STYLE DESIGNATOR | 0 END BAR WITH TONGUE |
| BUCKLE MATERIAL | STEEL |
| BUCKLE SURFACE TREATMENT | CADMIUM |
| FASTENED BUCKLE FEATURE | INCLUDED |
| BUCKLE FASTENING METHOD | LEVER ACTUATED |
| GROMMET QUANTITY | 1 |
| GROMMET BARREL STYLE DESIGNATOR | BELL FLANGE STRAIGHT TYPE |
| GROMMET WASHER STYLE DESIGNATOR | FLAT |
| DISTANCE FROM STRAP END TO FIRST GROMMET HOLE CENTER | 0.530 INCHES NOMINAL |
| FSC APPLICATION DATA | TRAILER,AIRCRAFT ENGINE |
