NSN 5340-00-181-1359
Part Details | NUT AND BOLT RETAINER
5340-00-181-1359 An item designed to fit over and hold a nut or bolt head to prevent it from turning. See also LOCKING PLATE, NUT AND BOLT.
Alternate Parts: 6820S048, 5340-00-181-1359, 00-181-1359, 5340001811359, 001811359
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | DEC 03, 1969 | 00-181-1359 | 16010 ( RETAINER, NUT AND BOLT ) |
REFERENCE DRAWINGS & PICTURES

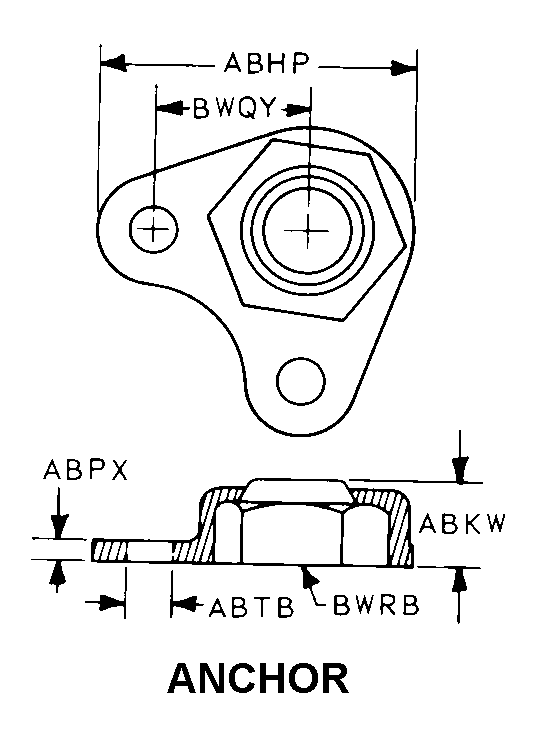

ANCHOR
Cross Reference | NSN 5340-00-181-1359
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6820S048 | 56878 | SPS TECHNOLOGIES, LLCDBA AEROSPACE DIVISION |
Technical Data | NSN 5340-00-181-1359
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ANCHOR |
| MATERIAL | STEEL CORROSION RESISTING |
| SURFACE TREATMENT | PASSIVATE |
| OVERALL LENGTH | 0.968 INCHES NOMINAL |
| OVERALL HEIGHT | 0.218 INCHES MINIMUM AND 0.223 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.040 INCHES MINIMUM AND 0.045 INCHES MAXIMUM |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN CUP AND MOUNTING HOLE | 0.495 INCHES MINIMUM AND 0.505 INCHES MAXIMUM |
