NSN 5340-00-179-3493
Part Details | CASEMENT FASTENER
5340-00-179-3493 A barring device consisting of an integral bar and handle which is either attached to a base plate or designed to be attached directly to the item which it fastens by a pin, bolt or screw. It is engaged by placing the integral bar in an adjoining cavity or strike and is secured by cam action. The fastener is usually mounted on the stile of a door and can be operated from one side only.
Alternate Parts: 8686989, 5340-00-179-3493, 00-179-3493, 5340001793493, 001793493
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 17, 1969 | 00-179-3493 | 06628 ( FASTENER, CASEMENT ) |
REFERENCE DRAWINGS & PICTURES

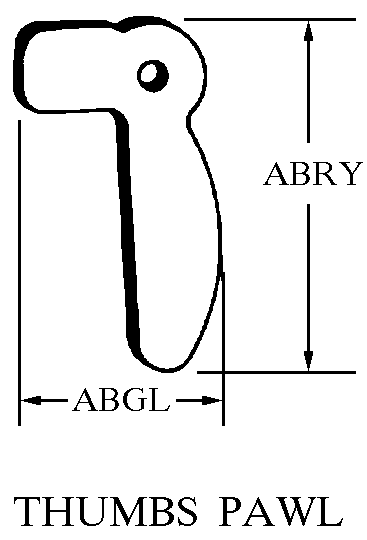

THUMBS PAWL
Cross Reference | NSN 5340-00-179-3493
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8686989 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5340-00-179-3493
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | THUMBS PAWL |
| WIDTH | 1.625 INCHES NOMINAL |
| LENGTH | 3.562 INCHES NOMINAL |
