NSN 5340-00-178-1403
Part Details | NUT AND BOLT LOCKING PLATE
5340-00-178-1403 A relatively thin metal item of various shapes, having two or more bolt holes and locking ears or tabs. The item is designed to be inserted on the bolts and the ears or tabs bent against the wrenching flat(s) of the bolt head or nut to restrict loosening of the bolt or nut. The locking ears or tabs may be prebent. See also RETAINER, NUT AND BOLT.
Alternate Parts: 5340001781403, 62.11.018, 7709908, 5340-00-178-1403, 00-178-1403, 5340001781403, 001781403
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 24, 1969 | 00-178-1403 | 22247 ( LOCKING PLATE, NUT AND BOLT ) |

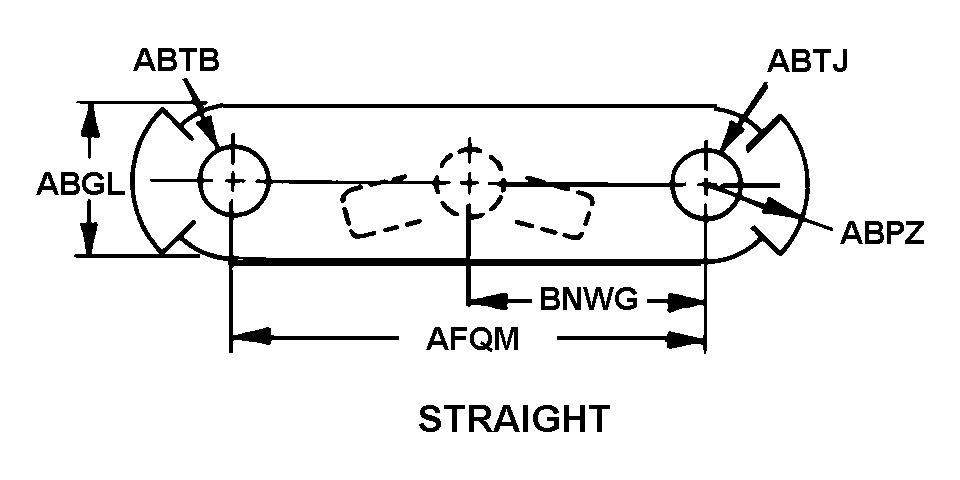

REFERENCE DRAWINGS & PICTURES
FLAT
STRAIGHT
Cross Reference | NSN 5340-00-178-1403
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5340001781403 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| 62.11.018 | 0124B | SAPA OPERACIONES SL |
| 7709908 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5340-00-178-1403
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | STRAIGHT |
| WIDTH | 0.600 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.345 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 1.420 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | FLAT |
| PLATE THICKNESS | 0.030 INCHES NOMINAL |
