NSN 5340-00-178-1390
Part Details | TURNBUCKLE
5340-00-178-1390 A metal loop, sleeve, or solid body with end pulls, having both ends threaded or one end threaded and the other end designed to accommodate a swivel. Items with both ends threaded shall have right hand screw threads on one end and left hand screw threads on the other. It may include lock nuts, check nuts, jam nuts, and/or terminal attachment(s) such as hooks, rings, and the like. It is designed to regulate the distance (take-up) between two points by turning. See also PELICAN HOOK AND TURNBUCKLE ASSEMBLY; and TIE ROD, TENSIONING, THREADED END.
Alternate Parts: IS5509, 10867476, 5340-00-178-1390, 00-178-1390, 5340001781390, 001781390
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 22, 1969 | 00-178-1390 | 00502 ( TURNBUCKLE ) |
REFERENCE DRAWINGS & PICTURES
HEX CLOSED BODY

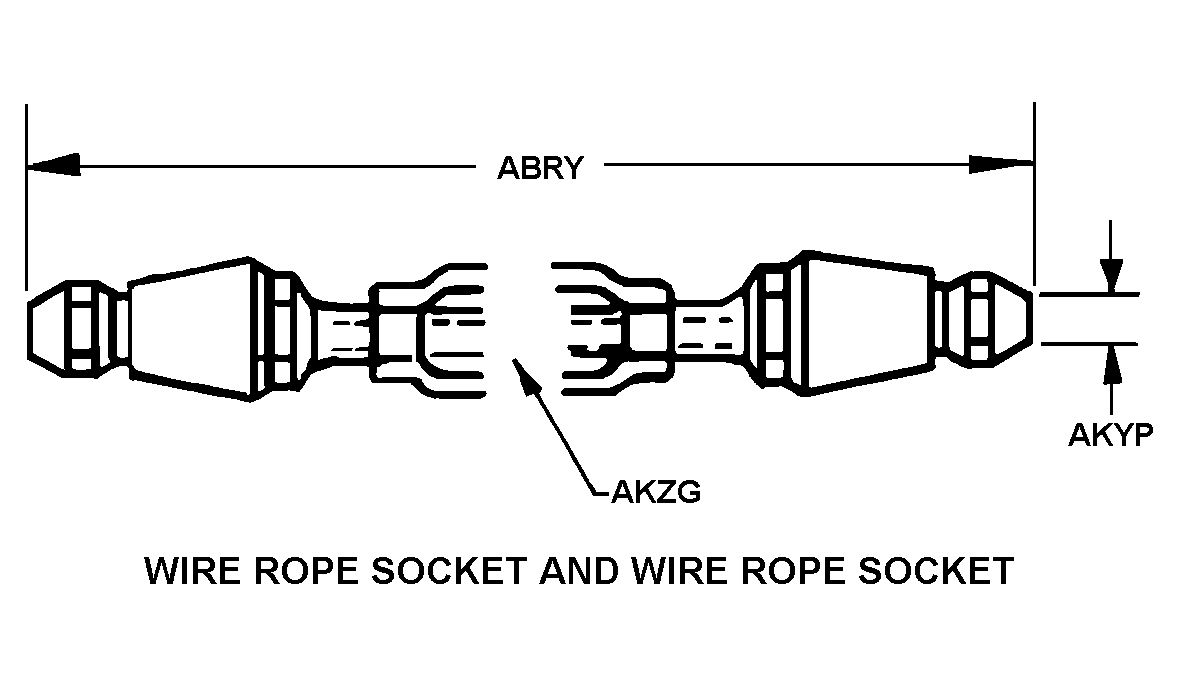

WIRE ROPE SOCKET AND WIRE ROPE SOCKET
Cross Reference | NSN 5340-00-178-1390
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| IS5509 | 79931 | ESMET, INC. |
| 10867476 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5340-00-178-1390
| Characteristic | Specifications |
|---|---|
| END STYLE | WIRE ROPE SOCKET AND WIRE ROPE SOCKET |
| LENGTH | 7.250 INCHES MINIMUM AND 10.125 INCHES MAXIMUM |
| ACCOMMODATED WIRE ROPE DIAMETER | 0.930 INCHES NOMINAL |
| TAKE-UP DISTANCE | 2.875 INCHES NOMINAL |
| BODY STYLE | HEX CLOSED BODY |
| BODY LENGTH | 4.250 INCHES NOMINAL |
| WIRE ROPE RETENTION METHOD | SOLID WEDGE |
| LOCKING DEVICE TYPE | NUT |
| FURNISHED ITEMS AND QUANTITY | 4 BOLT |
