NSN 5340-00-175-2560
Part Details | SNAP HOOK
5340-00-175-2560 A metal fastening device one or both ends of which are hook shaped with a closing or locking device over the throat opening which is held closed by spring action. If hook shaped on one end only the opposite end is provided with a fixed, loose, or swivel loop or opening for connecting to another item. Excludes cargo hooks with safety devices.
Alternate Parts: FIG249SIZE3, 5340-00-175-2560, 00-175-2560, 5340001752560, 001752560
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | DEC 08, 1971 | 00-175-2560 | 16954 ( SNAP HOOK ) |
REFERENCE DRAWINGS & PICTURES

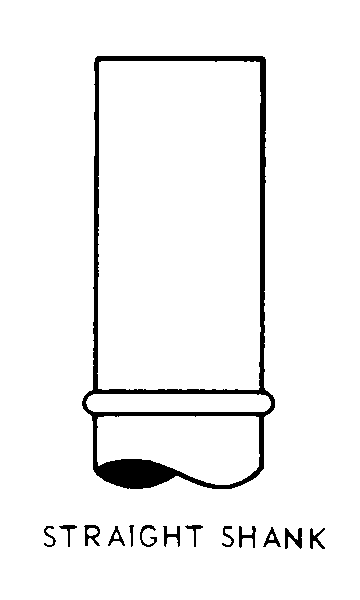

STRAIGHT SHANK
PIVOT
Cross Reference | NSN 5340-00-175-2560
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FIG249SIZE3 | 06762 | RIDGEWAY MANUFACTURING CORPORATION |
Technical Data | NSN 5340-00-175-2560
| Characteristic | Specifications |
|---|---|
| HOOK STYLE DESIGNATOR | PIVOT |
| DESIGN TYPE | FIXED |
| END POSITION | CONNECTION END IN SAME PLANE AS HOOK END |
| END CONNECTION STYLE | STRAIGHT SHANK |
| HOOK MATERIAL | IRON, MALLEABLE |
| CONNECTION END MATERIAL | |
| OVERALL LENGTH | 3.375 INCHES NOMINAL |
| RUBBER COVERED FEATURE | NOT INCLUDED |
| UNATTACHED RING | NOT INCLUDED |
