NSN 5340-00-173-8970
Part Details | RETAINING CLIP
5340-00-173-8970 A clip formed from resilient wire stock into a shape resembling the letter U, with each of the prongs having one or more curvatures along its length. It is designed to hold itself in place by its inherent spring action when fitted into the groove(s) or notch(es) of the item upon which a part, shaft, pin, or a like item is to be held in place. See also PIN, LOCK; RING, RETAINING and CLIP, SPRING TENSION. For items specifically designed for aviaton, see CLIP(1), RETAINING, AVIATION.
Alternate Parts: 500750, 500-750, 23125624, 2312562-4, E 5000007, E 5000-007, 5340-00-173-8970, 00-173-8970, 5340001738970, 001738970
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-173-8970 | 02385 ( CLIP, RETAINING ) |

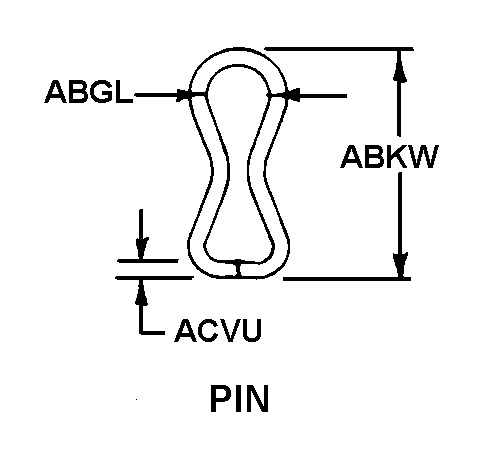

REFERENCE DRAWINGS & PICTURES
PIN
Cross Reference | NSN 5340-00-173-8970
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 500-750 | 80033 | MICRODOT MFG INCPRESTOLE EVERLOCK DIV |
| 2312562-4 | D9182 | ZF INDUSTRIEANTRIEBE WITTEN GMBH |
| E 5000-007 | D9182 | ZF INDUSTRIEANTRIEBE WITTEN GMBH |
Technical Data | NSN 5340-00-173-8970
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1060 |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE 1060 ASSN STD SINGLE MATERIAL RESPONSE |
| MATERIAL HARDNESS RATING | 38.0 ROCKWELL C MINIMUM AND 43.0 ROCKWELL C MAXIMUM |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| SURFACE TREATMENT | CADMIUM |
| STYLE DESIGNATOR | PIN |
