NSN 5340-00-172-8563
Part Details | ACCESS COVER
5340-00-172-8563 A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above.
Alternate Parts: 5158071, 5158701, 5158071, 5340-00-172-8563, 00-172-8563, 5340001728563, 001728563
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-172-8563 | 29785 ( COVER, ACCESS ) |
REFERENCE DRAWINGS & PICTURES

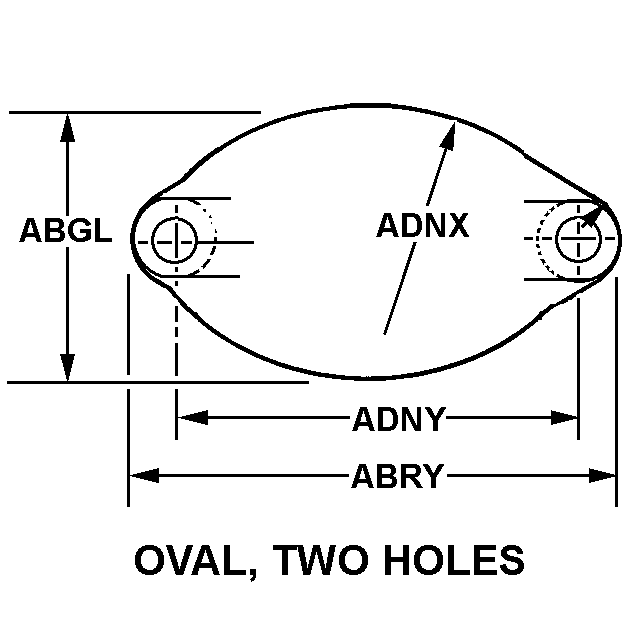

OVAL, TWO HOLES
UNTHREADED HOLE
Cross Reference | NSN 5340-00-172-8563
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5158071 | 24617 | GENERAL MOTORS CORP |
| 5158701 | 24617 | GENERAL MOTORS CORP |
| 5158071 | 72582 | MTU AMERICA INC. |
Technical Data | NSN 5340-00-172-8563
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| PERIPHERAL SHAPE STYLE | OVAL, TWO HOLES |
| LENGTH | 7.625 INCHES NOMINAL |
| BODY RADIUS | 1.188 INCHES NOMINAL |
| DISTANCE BETWEEN HOLES ALONG LENGTH | 5.875 INCHES NOMINAL |
| INSIDE DIAMETER | 5.625 INCHES NOMINAL |
| INSIDE CORNER RADIUS | 1.188 INCHES NOMINAL |
| MOUNTING OPENING SHAPE STYLE | UNTHREADED HOLE |
| HOLE DIAMETER | 0.344 INCHES NOMINAL |
| FEATURES PROVIDED | SEALING CAPABILITY |
