NSN 5340-00-168-7112
Part Details | WEBBING STRAP
5340-00-168-7112 A narrow strip of webbing cut to a definite length, having one or both ends processed. It is usually designed for, and may have, one or more attachments or fasteners, such as BUCKLE; LOOP, STRAP FASTENER; strap end clip; RING, DEE; Hook; and the like. Excludes STRAP, BERTH, MATTRESS RETAINING; STRAP, CHIN; safety straps; and WEBBING, TEXTILE. Do not use if a more specific item name applies.
Alternate Parts: 116305792, 11630579-2, 5340-00-168-7112, 00-168-7112, 5340001687112, 001687112
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | AUG 17, 1970 | 00-168-7112 | 20659 ( STRAP, WEBBING ) |
REFERENCE DRAWINGS & PICTURES
RECTANGLE

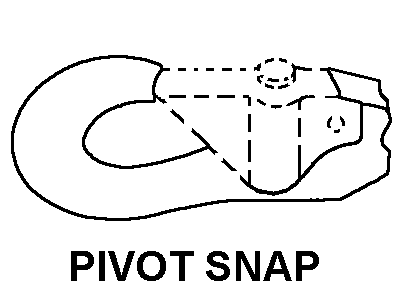

PIVOT SNAP
BALL CLIP
Cross Reference | NSN 5340-00-168-7112
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11630579-2 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5340-00-168-7112
| Characteristic | Specifications |
|---|---|
| WIDTH | 1.250 INCHES NOMINAL |
| LENGTH | 61.740 INCHES MINIMUM AND 61.990 INCHES MAXIMUM |
| END TYPE | W/ATTACHMENT |
| ENVIRONMENTAL PROTECTION | ABRASION RESISTANT |
| COLOR | OLIVE DRAB |
| END CLIP STYLE DESIGNATOR | BALL CLIP |
| END CLIP MATERIAL | BRASS |
| END CLIP QUANTITY | 1 |
| HOOK STYLE DESIGNATOR | PIVOT SNAP |
| HOOK CONNECTION TYPE | NONSWIVELING |
| HOOK MATERIAL | STEEL |
| HOOK QUANTITY | 1 |
| FASTENED HOOK FEATURE | INCLUDED |
| HOOK FASTENING METHOD | N ANY ACCEPTABLE |
| KEEPER MATERIAL | NYLON, MIL-W-27265, TYPE 17, CLASS L |
| KEEPER QUANTITY | 2 |
| FASTENED KEEPER FEATURE | INCLUDED |
| LOOP STYLE DESIGNATOR | 5 RECTANGLE |
| LOOP MATERIAL | STEEL |
| FASTENED LOOP FEATURE | INCLUDED |
| LOOP FASTENING METHOD | SEWED |
| LOOP LOCATION | 3.500 IN. FROM END |
| SPECIAL FEATURES | MATERIAL IS TYPE 21 PER MIL-W-27265 |
