NSN 5340-00-168-2773
Part Details | ANGLE BRACKET
5340-00-168-2773 A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF.
Alternate Parts: 8763080, 5340-00-168-2773, 00-168-2773, 5340001682773, 001682773
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUL 26, 1968 | 00-168-2773 | 16900 ( BRACKET, ANGLE ) |

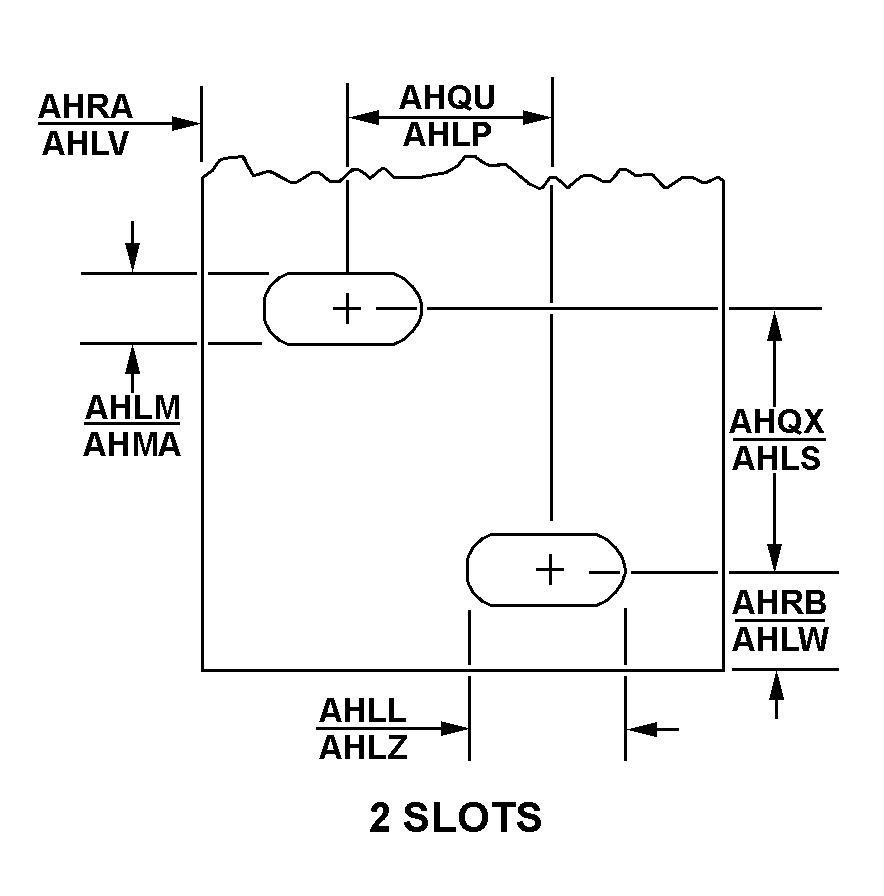

REFERENCE DRAWINGS & PICTURES
SQUARE
CORNER RADIUS
2 SLOTS
2 SLOTS
SQUARE
CORNER RADIUS
2 SLOTS
2 SLOTS
ANGLE
Cross Reference | NSN 5340-00-168-2773
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8763080 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5340-00-168-2773
| Characteristic | Specifications |
|---|---|
| MATERIAL | 5$DST1025 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-631 FED SPEC 1ST MATERIAL RESPONSE AND QQ-S-634 FED SPEC 2ND MATERIAL RESPONSE |
| STYLE DESIGNATOR | ANGLE |
| FIRST LEG LENGTH | 6.380 INCHES NOMINAL |
| SECOND LEG LENGTH | 10.315 INCHES NOMINAL |
| FIRST LEG THICKNESS | 0.375 INCHES NOMINAL |
| SECOND LEG THICKNESS | 0.375 INCHES NOMINAL |
| FIRST LEG ANGLE | 90.0 DEGREES NOMINAL |
| FIRST LEG STYLE | CORNER RADIUS |
| FIRST LEG WIDTH | 4.750 INCHES NOMINAL |
| FIRST LEG CORNER RADIUS | 0.250 INCHES NOMINAL |
| SECOND LEG WIDTH | 3.620 INCHES NOMINAL |
| FIRST LEG HOLE ARRANGEMENT STYLE | 2 SLOTS |
| FIRST LEG HOLE DIAMETER | 1.060 INCHES NOMINAL |
| FIRST LEG DISTANCE BETWEEN HOLE CENTERS ALONG WIDTH | 3.060 INCHES NOMINAL |
| FIRST LEG DISTANCE BETWEEN HOLE CENTERS ALONG LENGTH | 0.560 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.750 INCHES NOMINAL |
| FIRST LEG SLOT LENGTH | 1.000 INCHES NOMINAL |
| FIRST LEG SLOT WIDTH | 0.440 INCHES NOMINAL |
| SECOND LEG DISTANCE BETWEEN HOLE CENTERS ALONG WIDTH | 2.620 INCHES NOMINAL |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.500 INCHES NOMINAL |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 1.000 INCHES NOMINAL |
| SECOND LEG SLOT LENGTH | 1.000 INCHES NOMINAL |
| SECOND LEG SLOT WIDTH | 0.560 INCHES NOMINAL |
| SECOND LEG RELATIONSHIP TO FIRST LEG | NOT IDENTICAL |
| SECOND LEG STYLE | SQUARE |
| SECOND LEG HOLE ARRANGEMENT STYLE | 2 SLOTS |
| SPECIAL FEATURES | HOLE ARRANGEMENT DUPLICATED EACH LEG FIRST LEG SET 2.88 C-TO-C SECOND LEG SET 3.000 C-TO-C |
