NSN 5340-00-168-2710
Part Details | ACCESS COVER
5340-00-168-2710 A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above.
Alternate Parts: 10940503, 5340-00-168-2710, 00-168-2710, 5340001682710, 001682710
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUL 24, 1968 | 00-168-2710 | 29785 ( COVER, ACCESS ) |
REFERENCE DRAWINGS & PICTURES
CIRCULAR RECESS

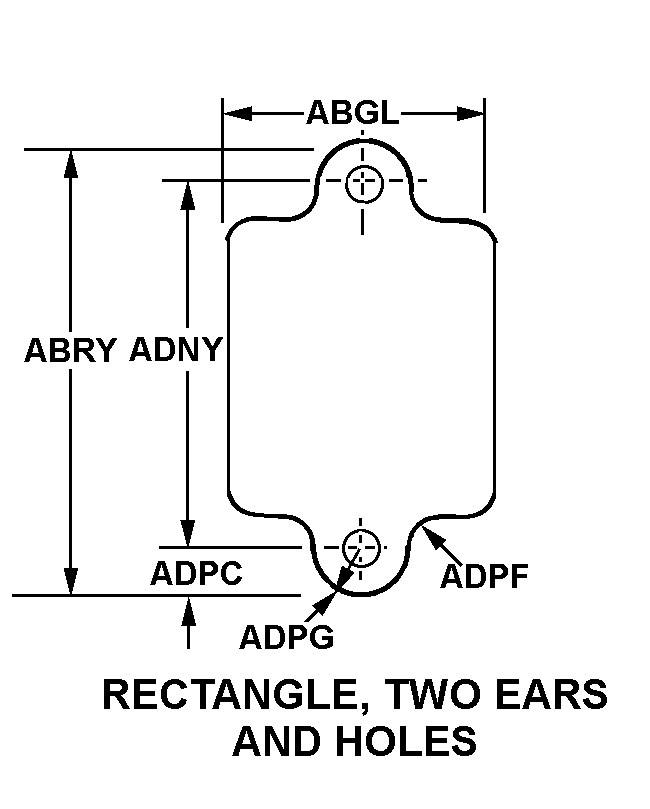

RECTANGLE, TWO EARS AND HOLES
UNTHREADED HOLE
Cross Reference | NSN 5340-00-168-2710
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10940503 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5340-00-168-2710
| Characteristic | Specifications |
|---|---|
| SECURING DEVICE TYPE | THREADED FASTENER |
| MATERIAL | ALUMINUM ALLOY 6061 |
| PERIPHERAL SHAPE STYLE | RECTANGLE, TWO EARS AND HOLES |
| WIDTH | 3.380 INCHES NOMINAL |
| LENGTH | 4.759 INCHES MINIMUM AND 4.761 INCHES MAXIMUM |
| DISTANCE FROM FIRST HOLE CENTERLINE TO END ALONG LENGTH | 0.380 INCHES NOMINAL |
| INVERTED RADIUS | 0.250 INCHES NOMINAL |
| EAR RADIUS | 0.380 INCHES NOMINAL |
| DISTANCE BETWEEN HOLES ALONG LENGTH | 3.999 INCHES MINIMUM AND 4.001 INCHES MAXIMUM |
| CROSS-SECTIONAL SHAPE STYLE | 6 CIRCULAR RECESS |
| BODY THICKNESS | 0.190 INCHES NOMINAL |
| MOUNTING OPENING SHAPE STYLE | UNTHREADED HOLE |
| HOLE DIAMETER | 0.310 INCHES NOMINAL |
