NSN 5340-00-168-2252
Part Details | CORNER BRACE
5340-00-168-2252 An item of rigid flat material usually shaped to a 90 degree angle (1.5705 radians), designed to be mounted on a single plane. For items designed to be mounted on more than one plane, see BRACKET, ANGLE.
Alternate Parts: 8762984, 5340-00-168-2252, 00-168-2252, 5340001682252, 001682252
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUL 01, 1968 | 00-168-2252 | 06606 ( BRACE, CORNER ) |

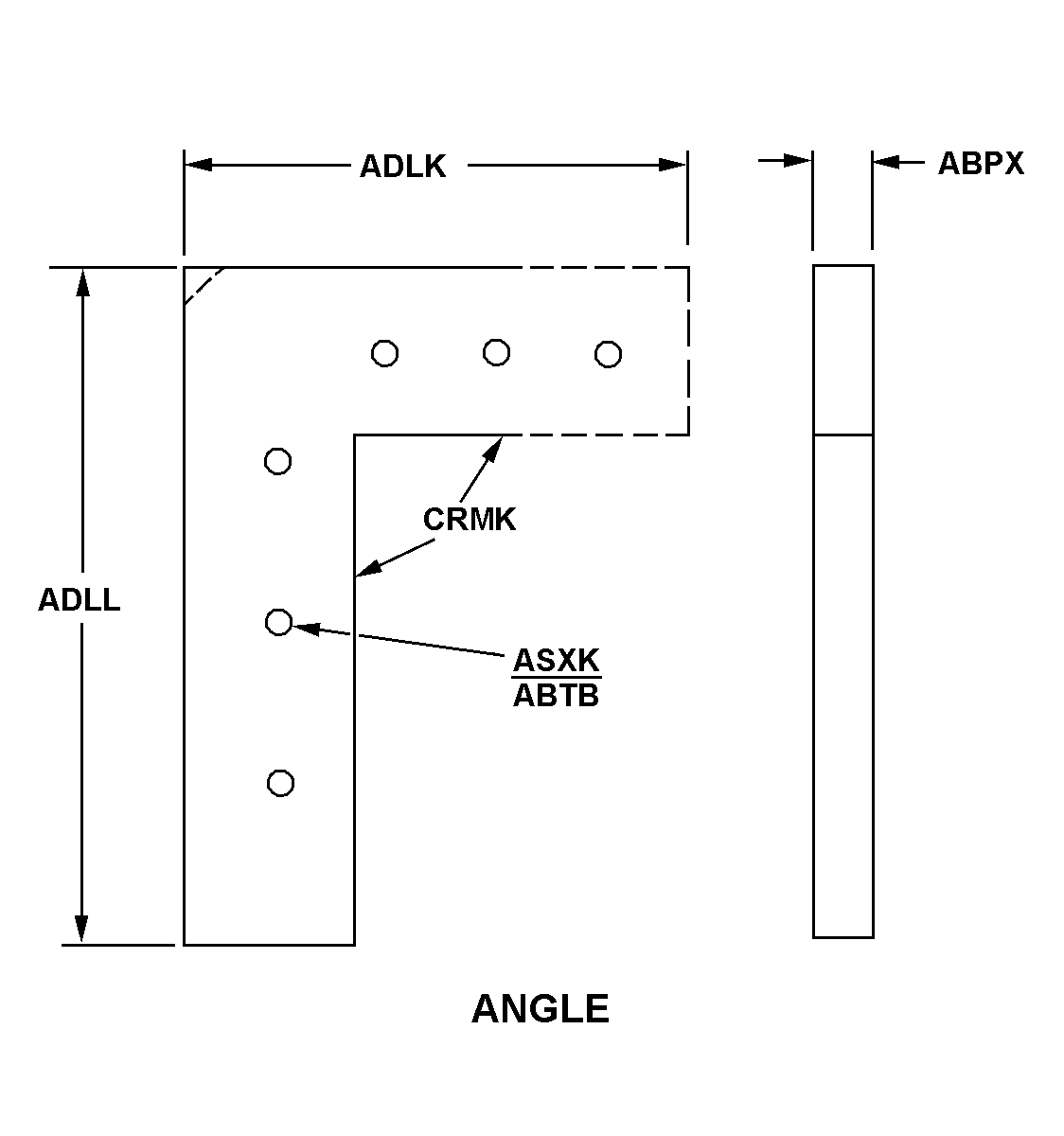

REFERENCE DRAWINGS & PICTURES
ANGLE
ONE HOLE
ANGLE
ONE HOLE
ANGLE
Cross Reference | NSN 5340-00-168-2252
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8762984 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5340-00-168-2252
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ANGLE |
| MATERIAL THICKNESS | 0.090 INCHES NOMINAL |
| FIRST LEG LENGTH | 5.313 INCHES NOMINAL |
| SECOND LEG LENGTH | 7.375 INCHES NOMINAL |
| ANGLE | 90.0 DEGREES NOMINAL |
| FIRST LEG END WIDTH | 0.188 INCHES NOMINAL |
| SECOND LEG END WIDTH | 0.188 INCHES NOMINAL |
| FIRST LEG HOLE DIAMETER | 0.375 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.375 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 1.250 INCHES NOMINAL |
| SECOND LEG HOLE DIAMETER | 0.375 INCHES NOMINAL |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.375 INCHES NOMINAL |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 1.562 INCHES NOMINAL |
| SECOND LEG STYLE | ANGLE |
| SECOND LEG HOLE ARRANGEMENT STYLE | ONE HOLE |
