NSN 5340-00-163-9787
Part Details | FRICTION CATCH STUD
5340-00-163-9787 A rigid metallic item with facilities for mounting to a door, sill, panel, or the like. It is the male component of a CATCH, FRICTION, designed to be inserted and retained by a RECEPTACLE, FRICTION CATCH STUD. For items having a spring actuated plunger, ball, bolt, latch, or the like, see CATCH, FRICTION.
Alternate Parts: 16762807016, 16762807-016, P1165706, P116-570-6, P116570, P116-570, 5340-00-163-9787, 00-163-9787, 5340001639787, 001639787
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | FEB 07, 1973 | 00-163-9787 | 18366 ( STUD, FRICTION CATCH ) |

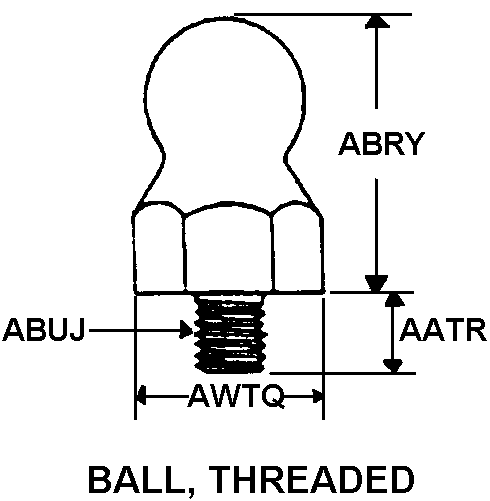

REFERENCE DRAWINGS & PICTURES
BALL, THREADED
Cross Reference | NSN 5340-00-163-9787
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 16762807-016 | 28009 | SYPRIS ELECTRONICS, LLCDIV SYPRIS ELECTRONICS, LLC - |
| P116-570-6 | 78553 | TINNERMAN PALNUT ENGINEEREDPRODUCTS, INC. |
| P116-570 | D9182 | ZF INDUSTRIEANTRIEBE WITTEN GMBH |
Technical Data | NSN 5340-00-163-9787
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BALL, THREADED |
| SHANK LENGTH | 0.187 INCHES NOMINAL |
| LENGTH | 0.570 INCHES NOMINAL |
| DISTANCE ACROSS FLATS | 0.250 INCHES NOMINAL |
