NSN 5340-00-161-6598
Part Details | WEBBING STRAP
5340-00-161-6598 A narrow strip of webbing cut to a definite length, having one or both ends processed. It is usually designed for, and may have, one or more attachments or fasteners, such as BUCKLE; LOOP, STRAP FASTENER; strap end clip; RING, DEE; Hook; and the like. Excludes STRAP, BERTH, MATTRESS RETAINING; STRAP, CHIN; safety straps; and WEBBING, TEXTILE. Do not use if a more specific item name applies.
Alternate Parts: AC6000375A268132, AC6000375A268-132, AC6000375A268132, AC6000375A268-132, 360516011, 360516-011, 5340-00-161-6598, 00-161-6598, 5340001616598, 001616598
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | FEB 02, 1973 | 00-161-6598 | 20659 ( STRAP, WEBBING ) |
REFERENCE DRAWINGS & PICTURES

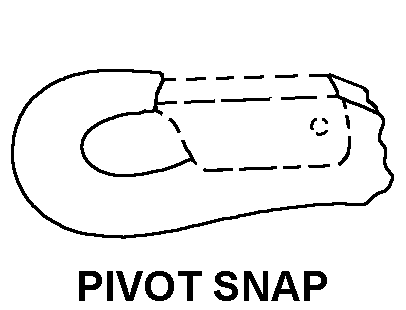

PIVOT SNAP
Cross Reference | NSN 5340-00-161-6598
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AC6000375A268-132 | 01276 | EATON-AEROQUIP INCDIV FLUID CONNECTORS PRODUCTS |
| AC6000375A268-132 | 00624 | EATON-AEROQUIP LLC.DBA AEROSPACE GROUP |
| 360516-011 | 05869 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5340-00-161-6598
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYAMIDE |
| WIDTH | 4.000 INCHES NOMINAL |
| LENGTH | 156.000 INCHES MINIMUM AND 268.000 INCHES MAXIMUM |
| END TYPE | BOTH W/ATTACHMENTS |
| COLOR | OLIVE DRAB |
| END ATTACHMENT/FASTENING FACILITY | SOCKET SNAP |
| BUCKLE LOCATION | 132.000 IN. FROM END |
| FASTENED BUCKLE FEATURE | INCLUDED |
| BUCKLE FASTENING METHOD | LEVER ACTUATED |
| HOOK STYLE DESIGNATOR | PIVOT SNAP |
| HOOK CONNECTION TYPE | NONSWIVELING |
| HOOK QUANTITY | 2 |
| FASTENED HOOK FEATURE | INCLUDED |
| HOOK FASTENING METHOD | N ANY ACCEPTABLE |
