NSN 5340-00-161-1342
Part Details | TURNBUCKLE
5340-00-161-1342 A metal loop, sleeve, or solid body with end pulls, having both ends threaded or one end threaded and the other end designed to accommodate a swivel. Items with both ends threaded shall have right hand screw threads on one end and left hand screw threads on the other. It may include lock nuts, check nuts, jam nuts, and/or terminal attachment(s) such as hooks, rings, and the like. It is designed to regulate the distance (take-up) between two points by turning. See also PELICAN HOOK AND TURNBUCKLE ASSEMBLY; and TIE ROD, TENSIONING, THREADED END.
Alternate Parts: 00045810, 323360005, 3233-6000-5, 1FC12, 5340-00-161-1342, 00-161-1342, 5340001611342, 001611342
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 24, 1973 | 00-161-1342 | 00502 ( TURNBUCKLE ) |
REFERENCE DRAWINGS & PICTURES
ROUND OPEN BODY

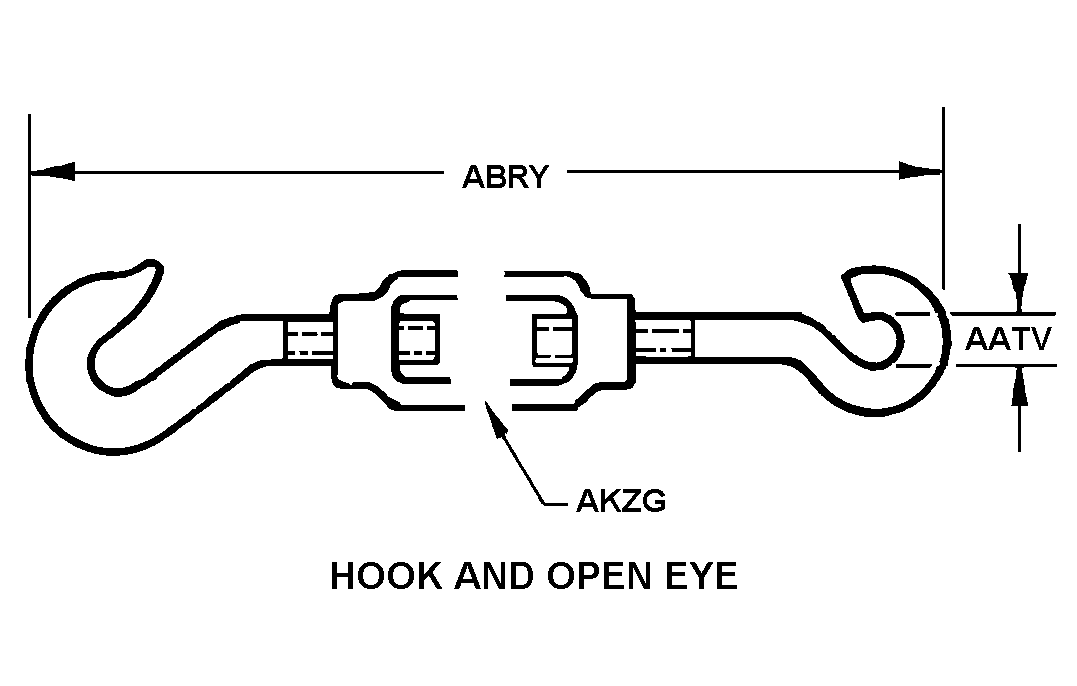

HOOK AND OPEN EYE
Cross Reference | NSN 5340-00-161-1342
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 00045810 | 11939 | KIDDE FIRE FIGHTING, INC.DIV NATIONAL FOAM |
| 3233-6000-5 | 11939 | KIDDE FIRE FIGHTING, INC.DIV NATIONAL FOAM |
| 1FC12 | 45152 | OSHKOSH CORPORATION |
Technical Data | NSN 5340-00-161-1342
| Characteristic | Specifications |
|---|---|
| END STYLE | HOOK AND OPEN EYE |
| BODY STYLE | ROUND OPEN BODY |
